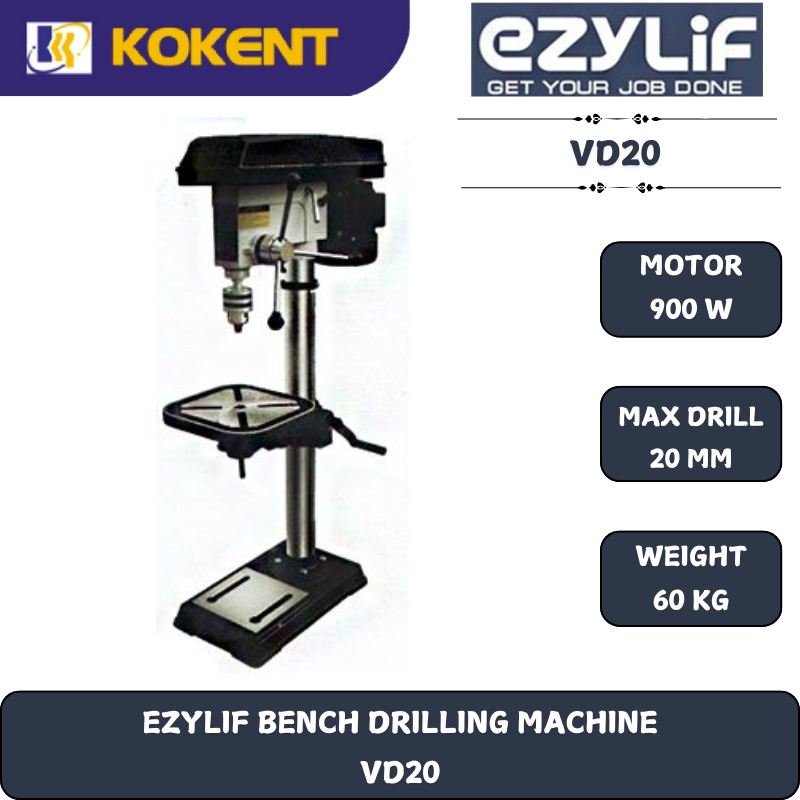

Ezylif Bench Drilling Machine VD20

Technical Data

Model: VD20
Max Driling Diameter: 20 mm (3/4")
Motor Power: 900 w
Spindle Travel: 85 mm
Class of Speed: 16
Speed 50Hz: 180-2770 rpm
Spindle Taper: MT2
Max Distance:
• Spindle axis to surface of column - 180 mm
• Spindle end to surface of table - 620 mm
• Spindle end to surface - 810 mm
Swing: 360 mm
Table Size: 290 x 290 mm
Base Size: 460 x 270 mm
Column Diameter: 72 mm
Height: 1200 mm
Packing Dimension: 1010 x 490 x 275 mm
Net Weight: 58 kg
Gross Weight: 60 kg

Ezylif Bench Drilling Machine VD20

Ezylif Machinery - Ezylif Bench Drilling Machine VD20

• Adjustable height work table
• 16 variable speed
• Column diameter : 72mm
• EZYLIF VD20 Bench Drilling Machine 900w 360mm swing
