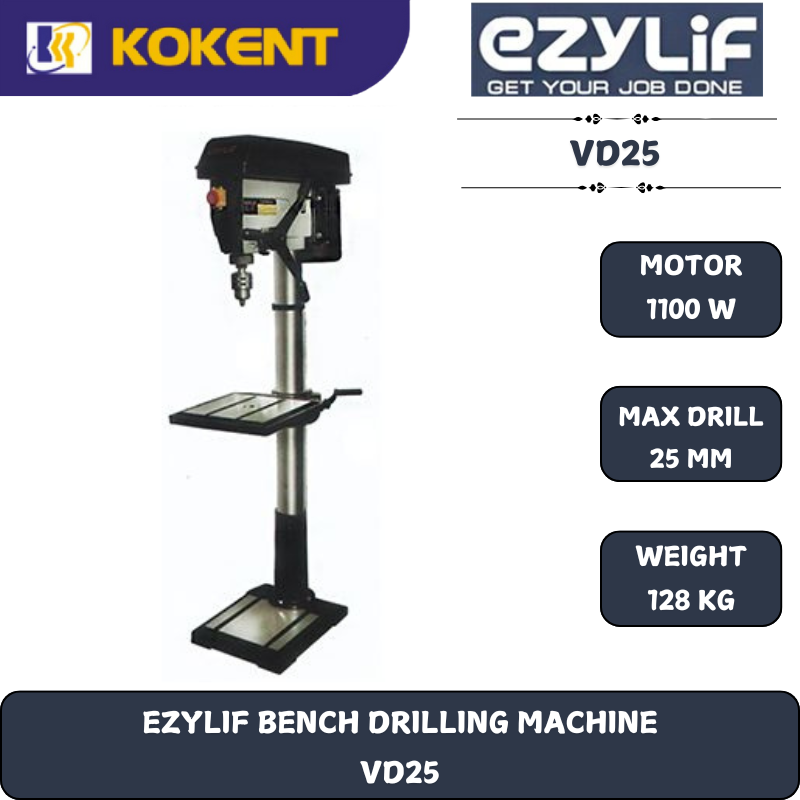

Ezylif Bench Drilling Machine VD25

Technical Data

Model: VD25
Max Driling Diameter: 25 mm (1")
Motor Power: 1100 w
Spindle Travel: 120 mm
Class of Speed: 12
Speed 50Hz: 150-2450 rpm
Spindle Taper: MT3
Max Distance:
• Spindle axis to surface of column - 220 mm
• Spindle end to surface of table - 765 mm
• Spindle end to surface - 1225 mm
Swing: 440 mm
Table Size: 350 x 350 mm
Base Size: 470 x 360 mm
Column Diameter: 92 mm
Height: 1710 mm
Packing Dimension: 1415 x 650 x 305 mm
Net Weight: 120 kg
Gross Weight: 128 kg

Ezylif Bench Drilling Machine VD25

Ezylif Machinery - Ezylif Bench Drilling Machine VD25

• Adjustable height work table
• 12 variable speed
• Column diameter : 92 mm
• Solid built, high accurate bench drilling machine
