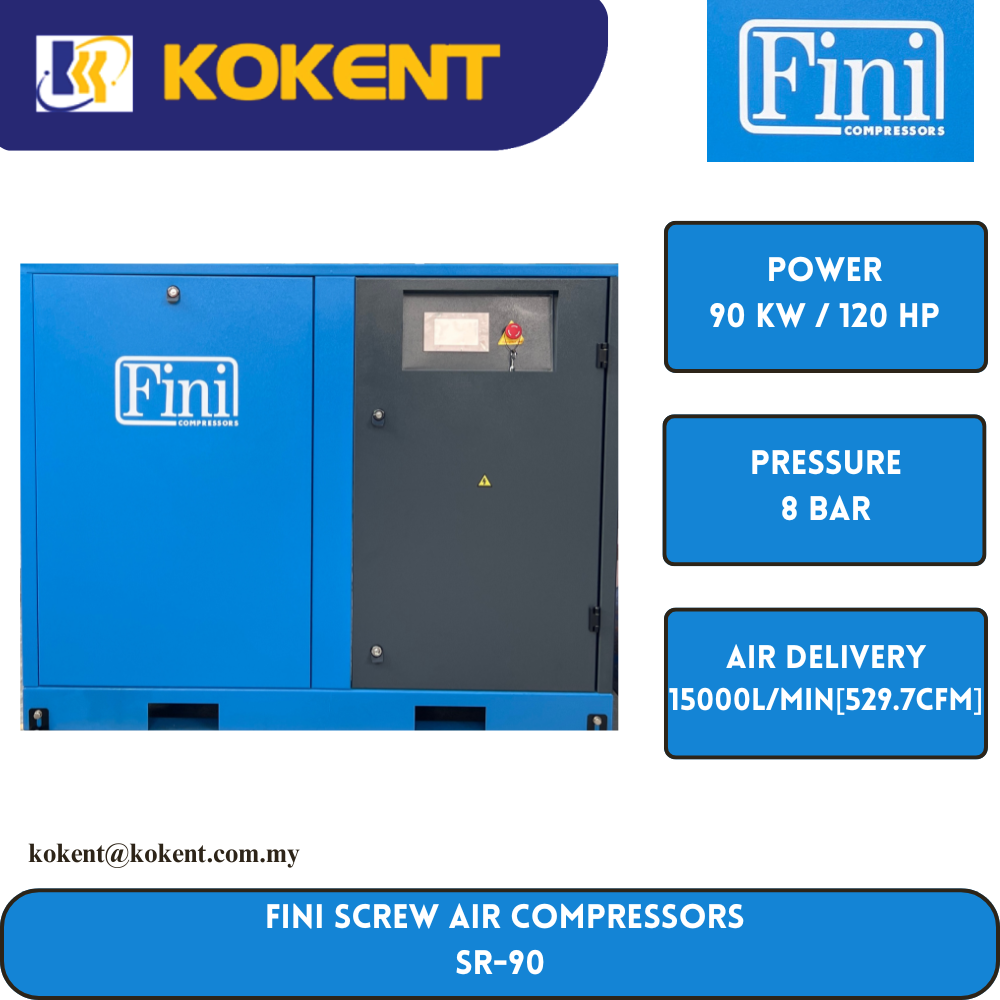

FINI SCREW AIR COMPRESSOR SR-90
FINI SCREW AIR COMPRESSOR SR-90

FINI SCREW AIR COMPRESSOR SR-90

Product Code: SR-90
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

FINI SCREW AIR COMPRESSOR SPECIFICATIONS

MODEL SR-22 SR-37 SR-55 SR-75 SR-90 SR-110
POWER (KW) 22 KW 37 KW 55 KW 75 KW 90 KW 110 KW
HORSEPOWER (HP) 30 HP  50HP 75 HP 100 HP 125 HP 150 HP
WORKING PRESSURE (KG/CM² /BAR) 8 8 8 8 8 8
FREE AIR DELIVERY (L/MIN/CFM) 3400 (120 CFM)  6200 (219 CFM) 9200 (324.9 CFM) 12500 (441.4 CFM) 15000 (529.7 CFM) 19000 (671 CFM)
NOISE (dBA) 68±3 70±3 72±3 72±3 75±3 75±3
WEIGHT (KG) 400 KG 550 KG 1150 KG 1300 KG 1900 KG 2200 KG
DIMENSION (MM) 1350 x 895 x 1150 1500 x 1000 x 1195 1900 x 1300 x 1600 1800 x 1360 x 1665 2000 x 1535 x 1800 2100 x 1535 x 1800
AIR OUTLET DIAMETER 1” 1 ½” 2” 2” 2” DN 65
