FUJI Concrete Vibrator (VP)

FUJI Concrete Vibrator (VP)
FUJI Concrete Vibrator (VP)

FUJI Concrete Vibrator (VP)

Product Code: LV35x5
Availability: Pre Order
Loading ...
Share:

Model: LV35x5

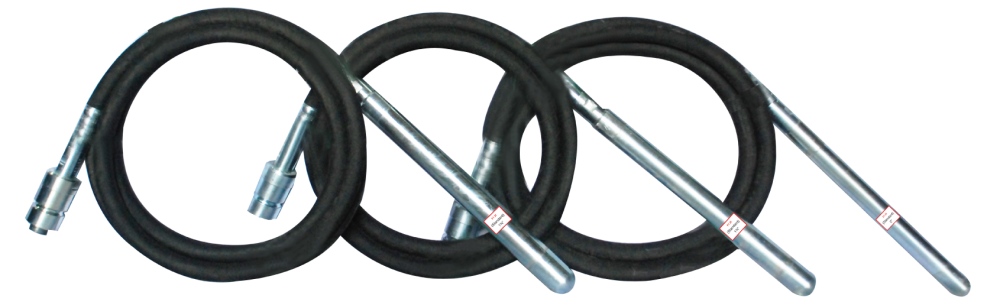

Fuji local concrete vibrator 35mm x 5m

Features

  • The all new FUJI concrete vibrator is upgraded with improved features.
  • Improved quality of rotary shafts, housing and head caps. Hardened for extra durability.
  • The flexible hose is reinforced with double braided steel mesh to last longer.
  • By adopting the special pendulum type of vibration it overcomes the defects of conventional vibrators.
  • Rotational speed is about 3000rpm which is about one-third that of conventional vibrator. Hence wear and tear of the flexible shaft and other rotating parts are extremely little, reducing trouble to a minimum.
  • Flexible shaft is not affected by vibration because it is connected to the vibrator shaft through a unique spring.
  • Flexible shaft can be connected to the prime mover in one motion without using any tools.

Specifications

Flexible Shaft 12mm x 5m
Vibrating Head 1-3/8" x 46.5mm
Vibrating Frequency 12000-13000vpm
Vibration Amplitude 1.60mm
Centrifugal Force 3000N
