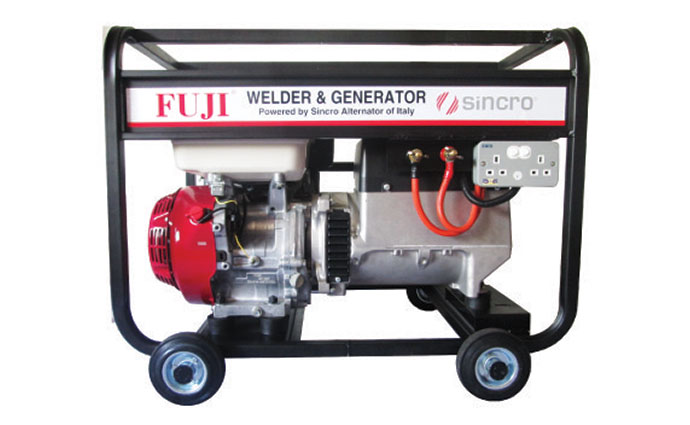

FUJI WELDER & GENERATOREA1800AC
Product Code: EA180AC
Availability: Pre Order
lternator Model: EA180AC
Speed (rpm): 3000
Welding Current (A): 60 ÷ 135 / 90 ÷ 180
Strike Voltage: 50 ÷ 62.5
Welding Voltage: 22.4 ÷ 28 / 23.6 ÷ 27.2
Driving Power KW (hp): 8.0(11.0)
Duty (A): 200(35%); 125(60%)
Power Output (KVA): 5.0 (Single Phase)
Voltage (V): 115/230
Current (A): 43.4/21/7
Frequency (Hz): 50
Welding Electrode Size Max: 3.2mm
Options of engines to be a assembled with the above alternator:
| No | Brand | Model | Fuel | Max. Output (hp) |
Fuel Tank Capacity (lit) |
Total Net Weight (kg) |
Diamension (mm) (L)x(W)x(H) |
Starting System |
| 1.1 | Honda | GX390 | Gasoline | 13.0 | 6.1 | 87 | 865 x 535 x 600 | Recoil |
