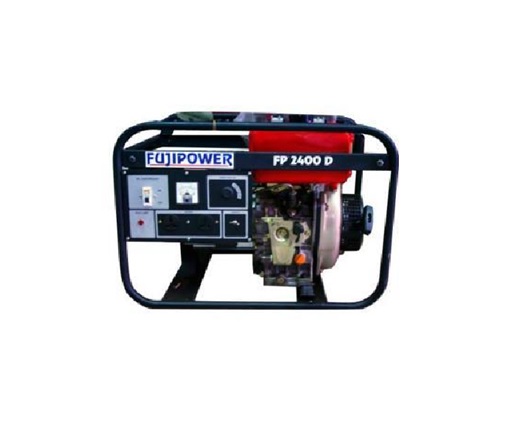

Fujipower Diesel Generator Set (II)
Product Code: FP2400D
Availability: Pre Order
Engine
| Diesel Generator Set Model | FP2400D |
| Model | BM170FG |
| Type | Single-Cylinder, 4-Stroke Air-Cooled Diesel Engine |
| Combustion System | Direct Injection |
| Displacement(cc) | 211 |
| Bore X Stroke (mm) | 70x55 |
| Engine Speed(rpm) | 3000 3600 |
| Continuous Output (hp) | 3.4 3.8 |
| Maximum Output(hp) | 3.8 4.2 |
| Fuel Consumption (g/hp) | 209 218 |
| Power Take Off | Crankshaft or Camshaft (Camshaft PTO RPM is 1/2 of Crankshaft) |
| Output Direction of PTO | Counter-Clockwise |
| Cooled Type | Forced Air Cooled System |
| Governor System | Centrifugal Weight System |
| Starting System | Recoil or Recoil/Electric |
| Fuel | Diesel |
| Fuel Tank Capacity | 2.5 |
| Lube Oil Capacity | 0.75 |
| DIM LxWxH | 430x370x465 |
| Weight (KG) | 35 |
| Noise Level | 82 db (A) at 4 mts |
Alternator
| Model | R80 LBL |
| Power | 2.2Kva |
| Frequency | 50Hz |
| Voltage | 230 V |
| Speed | 3000 rpm |
| Weight | 13.8KG |
