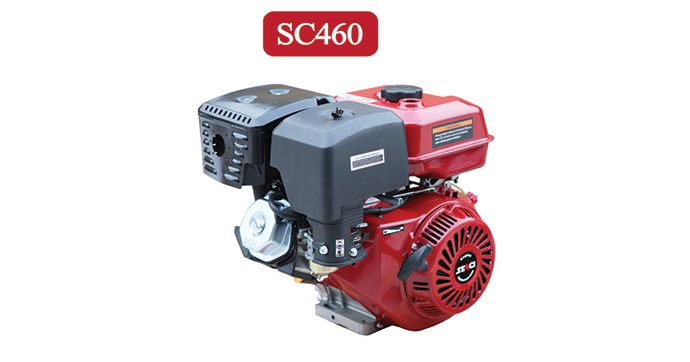

Product Code: SC460
Availability: Pre Order
Loading ...
Share:

SPECIFICATION

Gasoline Engine SC230 SC460
Engine model Single Cylinder (SC2V78, Twin Cylinder), Forced Air Cooling, 4 Strokes, OHV 25°
Starting System Recoil/E-Start Recoil/E-Start
Compression Ratio 8:5:1 8:5:1
Horse Power (HP) 7.5 16
Suction Port Diameter (mm) 50 80
Displacement (cc) 223 459
Max. Output (Kw/rpm) 5.0/3600 9.8/3600
Max. Torque (N.m/rpm) 14.0/2500 29.0/2500
Ignition Type T.C.I T.C.I
Fuel Consumption (100% load) 2.07 L/H 2.75 L/H
Fuel Tank Capacity (L) 3.6 6.5
Oil Capacity (L) 0.6 1.1
Dimension (L x W x H) (mm) 370 x 310 x 360 490 x 400 x 450
Net weight (kg) 16 31
