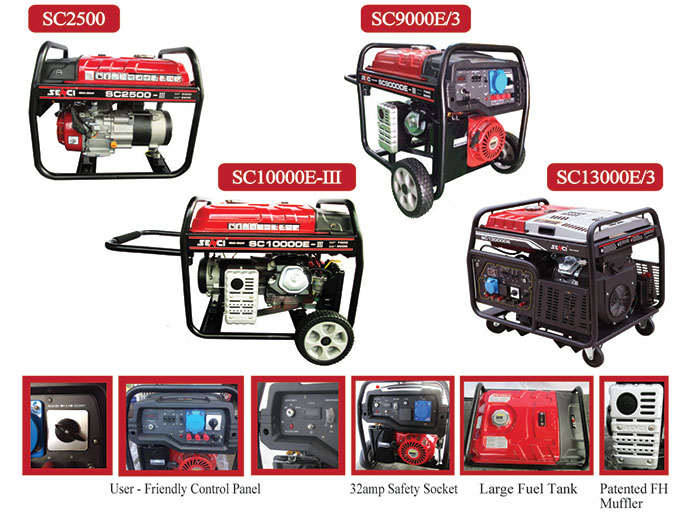

GASOLINE GENERATOR
Product Code: SENCI PRODUCT
Availability: Pre Order
SPECIFICATION
| Model | SC1250-III | SC2500-III | SC4000-III | SC8000E-III | SC9000E/3 | SC10000E-III | SC13000E/3 |
| Engine Model | SC156F (3HP) |
SC168FB (6.5HP) |
SC230FB (7.5HP) |
SC420F (14HP) |
SC460F (16HP) |
SC460FB (16HP) |
2V78F (22HP) |
| Starting System | Recoil | Recoil / E-start | |||||
| Displacement (cc) | 98 | 196 | 223 | 420 | 459 | 459 | 688 |
| Compression Ratio | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 |
| Rated Frequency (Hz) | 50 | ||||||
| Rated / Max Power (Kw) | 0.8/1.0 | 2.0/2.2 | 3.2/3.5 | 6.5/7.0 | 7.0/8.0 | 7.0/8.0 | 10/11 |
| Rated Voltage (V) | 240 | 240 | 240/415 | 240 | 240/415 | ||
| Fuel tank capacity (L) | 6 | 15 | 15 | 25 | 25 | 25 | 30 |
| Fuel Consumptoin (100% load) | 0.78L/H | 0.928L/H | 2.4L/H | 3.74L/H | 3.95L/H | 4.16L/H | 5.325L/H |
| Full Load Continuous Running Time (h) |
7.0 | 10.5 | 7.5 | 6.5 | 6.5 | 6.5 | 6.0 |
| 1/2 Load Continuous Running Time (h) |
12.0 | 17.0 | 12.0 | 10.5 | 10.5 | 10.5 | 13 |
| Noise Level @ 7m dB.(A) | < 97 | < 98 | < 98 | < 100 | < 100 | < 100 | < 98 |
| Dimension (H x W x L) (mm) |
510 x 390 x 450 |
620 x 485 x 530 |
620 x 485 x 530 |
725 x 550 x 610 |
725 x 550 x 610 |
725 x 550 x 610 |
990 x 660 x 940 |
| Net Weight (kg) | 28 | 42 | 50 | 88 | 90 | 94 | 215 |
