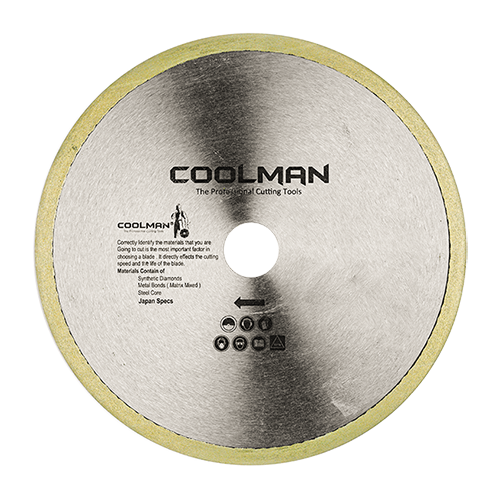

The COOLMAN SHP-GL200 cutting blade has been engineered specifically for fine glass cutting where chipping is not acceptable. The combination of fine, evenly spaced diamonds and an improved bond allows the SHP cutting blade to cut withno chipping and a remarkably smooth finish.
Additional information
| BOND DESIGN |
Continuous Rim |
|---|---|
| BORE DIAMETER |
22.23mm / 25.4mm |
| CHARACTERIZE |
Super High Precise Cutting |
| CUT DEPTH |
2.75" / 70mm |
| APPLICATION MATERIAL |
Art Glass, B270/Crown Glass, Ceramic Glass, Electronic Glass, Flat Glass, Float Glass, Fused Silica/Fused Quartz, Glass Assemblies, Glass Tubing, Optics, Photonics, Quartz Glass, Soda Lime Glass, Stained Glass, Technical Glass 1737F, Tempered Glass |
| DIAMETER |
8" / 200mm |
| EQUIPMENT |
Tile Cutter |
| GRADE |
Supreme |
| OPERATING MAX. SPEED |
7,650 RPM |
| OPERATING MIN. SPEED |
4,500 RPM |
| SEGMENT HEIGHT |
8mm |
| SEGMENT WIDTH |
1.5mm |
| USAGE |
Wet Cut |
| WELDING TECHNOLOGY |
Sintered |
