GLASS CUTTING BLADE

GLASS CUTTING BLADE
GLASS CUTTING BLADE

GLASS CUTTING BLADE

Product Code: SHP GL230
Availability: Pre Order
Loading ...
Share:

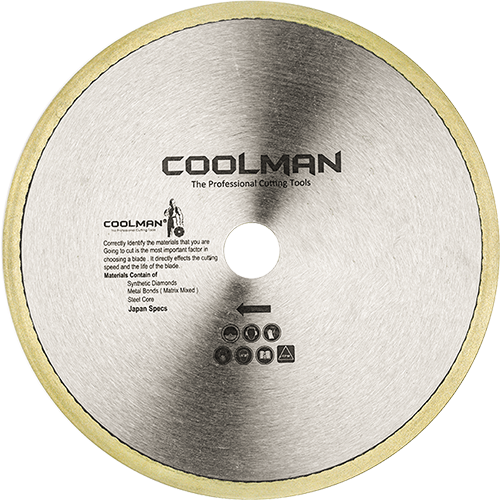

The COOLMAN® SHP-GL230 cutting blade has been engineered specifically for fine glass cutting where chipping is not acceptable. The combination of fine, evenly spaced diamonds and an improved bond allows the SHP cutting blade to cut withno chipping and a remarkably smooth finish.

Additional information

BOND DESIGN

Continuous Rim

BORE DIAMETER

22.23mm / 25.4mm

CHARACTERIZE

Super High Precise Cutting

CUT DEPTH

3.25" / 83mm

APPLICATION MATERIAL

Art Glass, B270/Crown Glass, Ceramic Glass, Electronic Glass, Flat Glass, Float Glass, Fused Silica/Fused Quartz, Glass Assemblies, Glass Tubing, Optics, Photonics, Quartz Glass, Soda Lime Glass, Stained Glass, Technical Glass 1737F, Tempered Glass

DIAMETER

9" / 230mm

EQUIPMENT

Tile Cutter

GRADE

Supreme

OPERATING MAX. SPEED

6,800 RPM

OPERATING MIN. SPEED

4,025 RPM

SEGMENT HEIGHT

8mm

SEGMENT WIDTH

1.5mm

USAGE

Wet Cut

WELDING TECHNOLOGY

Sintered
