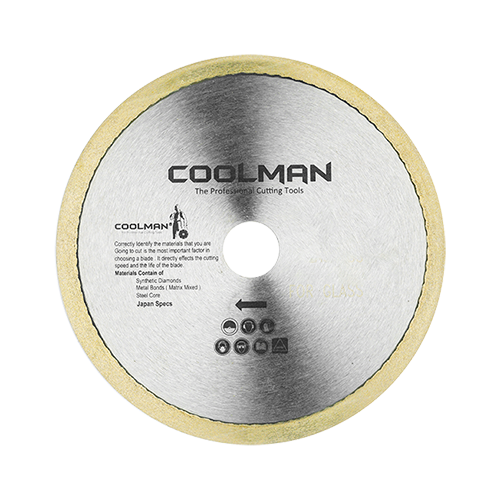

The COOLMAN SHP-GL180 cutting blade has been engineered specifically for fine glass cutting where chipping is not acceptable. The combination of fine, evenly spaced diamonds and an improved bond allows the SHP cutting blade to cut withno chipping and a remarkably smooth finish.
Additional information
| APPLICATION MATERIAL |
Art Glass, B270/Crown Glass, Ceramic Glass, Electronic Glass, Flat Glass, Float Glass, Fused Silica/Fused Quartz, Glass Assemblies, Glass Tubing, Optics, Photonics, Quartz Glass, Soda Lime Glass, Stained Glass, Technical Glass 1737F, Tempered Glass |
|---|---|
| CHARACTERIZE |
Super High Precise Cutting |
| WELDING TECHNOLOGY |
Sintered |
| BOND DESIGN |
Continuous Rim |
| OPERATING MIN. SPEED |
5,175 RPM |
| OPERATING MAX. SPEED |
8,725 RPM |
| BORE DIAMETER |
22.23mm / 25.4mm |
| USAGE |
Wet Cut |
| EQUIPMENT |
Tile Cutter |
| GRADE |
Supreme |
| CUT DEPTH |
2.25" / 57mm |
| DIAMETER |
7" / 180mm |
| SEGMENT HEIGHT |
8mm |
| SEGMENT WIDTH |
1.5mm |
