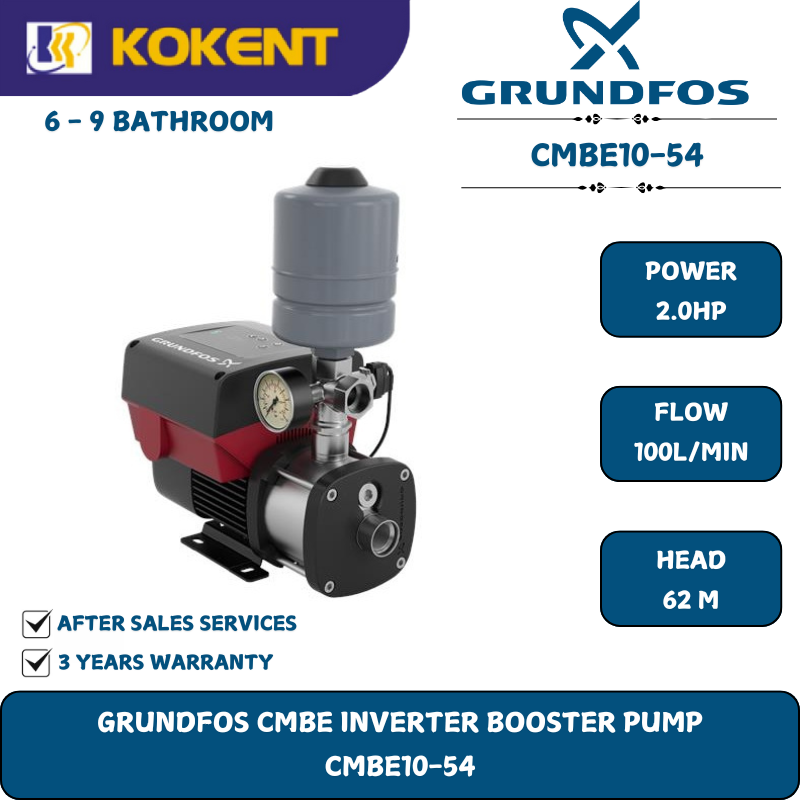

GRUNDFOS CMBE INVERTER BOOSTER PUMP CMBE10-54

Product Code: CMBE10-54

Availability: In Stock

017 432 8850 019 209 0701

Description

Suitable for

Commercial water pressure boosting

Domestic water pressure boosting

CMBE is a high-efficiency compact booster for clean water supply and pressure boosting in domestic and light commercial applications. It keeps constant pressure via the integrated speed control.

The Grundfos CME Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal to the speed controller to change the motor speed to adapt performance to the new state. The CME Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the unit into a socket, and the system is operational. The CME Booster consists of:

CME pump with integrated frequency converter

5-way valve

expansion tank

pressure gauge

Features

Constant pressure, integrated speed control

compact

robust, stainless steel

easy installation

dry run protection

Thermal protection CME Booster pumps require no external motor protection. The MGE motor incorporates thermal protection against slow overloading and blocking (IEC 34.11: TP

211).

Applications Grundfos CMBE Booster is mainly used for domestic and light commercial water supply or booster systems.

NB:

Suction lift: Max. 1 m, including a suction-pipe pressure loss at a liquid temperature of +20 °C. (not self-priming)

LIQUID:

Pumped liquid: Water

Liquid temperature range: 0 .. 60 °C

Selected liquid temperature: 20 °C

Density: 998.2 kg/m³

TECHNICAL:

Pump speed on which pump data are based: 3868 rpm

Rated flow: 12.3 m³/h
