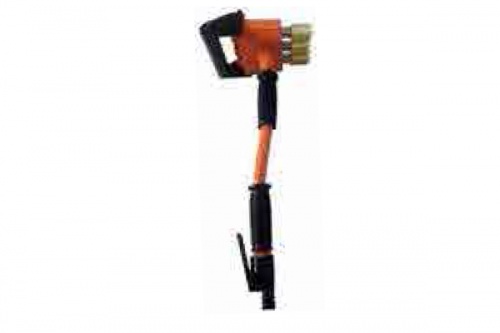

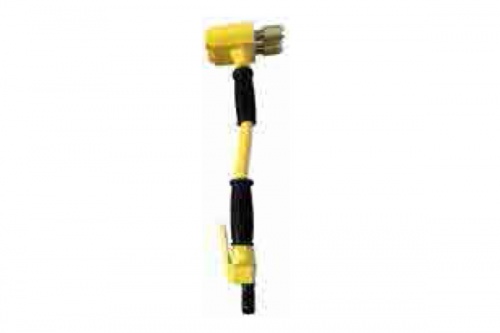

Hand Held Wall Scabbler
Product Code: Hand Held Wall Scabbler
Availability: Pre Order
Product Detail
| Model | CN-A1 | CN-A2 | CN-A3 |
| Piston Diameter mm(in) | 27(1.06) | 27(1.06) | 27(1.06) |
| Piston Length mm (in) | 68.6(2.7) | 68.6(2.7) | 68.6(2.7) |
| Piston Stroke mm (in) | 26.5(1.04) | 26.5(1.04) | 26.5(1.04) |
| Blows Per Minut (BPM) | 4800 | 4800 | 4800 |
| Air Consumption lps(8cfm) | 3.71 | 3.71 | 3.71 |
| Air Requirement kg/cm2 | 6.32 | 6.32 | 6.32 |
| Length min (in) | 485(19.1) | 485(19.1) | 485(19.1) |
| Height mm (in) | 175.2 (6.9) | 175.2 (6.9) | 175.2 (6.9) |
| Weight kg (lbs) | 3.5(7.7) | 4(8.8) | 6.5(14.3) |
| Vibration Level (Starting) | 6.96(k=+40%-0%) | 6.96(k=+40%-0%) | 6.96(k=+40%-0%) |
| Vibration Level (Operating) | 26.0(k=+40%-0%%m) | 26.0(k=+40%-0%%m) | 26.0(k=+40%-0%%m) |
