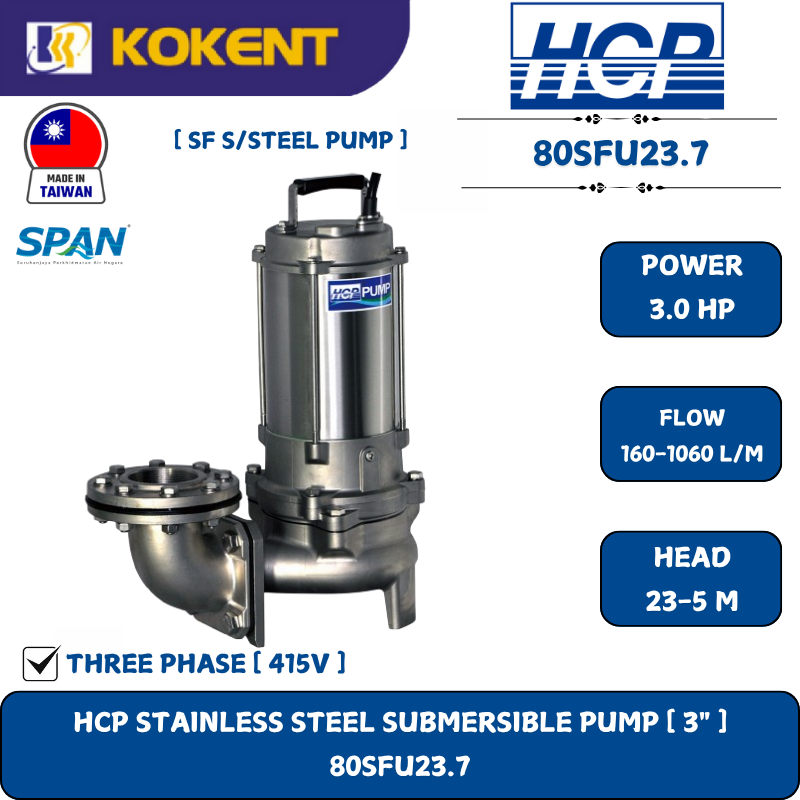

HCP STAINLESS STEEL SUBMERSIBLE PUMP [ 3".5HP.415V.160-1060L/M.23-5M ] 80SFU23.7
Product Code: 80SFU23.7
Availability: In Stock
Description
Model: HCP 80SFU23.7
HCP 80SFU23.7 (made in Taiwan) is a submersible stainless steel SS316 pump for sea water, light acid & corrosive water.
- SS316
- 3 phase
- Without auto float switch
Features
- Best structure design, has a dry motor, IP68, double mechanical seals, equipped with an auto-cut protection, pump casting, outer cover is stainless steel, and acid-resistant silicon carbide seals.
- The stainless series is suitable for all light acid, corrosive and/or sea water application fluid in pH values between 4 to 10pH. For strong acidity and alkalinity applications, please use the specified chemical pump.
- Investment Casting Precision casting with the use of an advanced stainless investment casting method that produces the highest quality with a smooth surface finish.
- Viton O-ring Viton O-rings are used throughout the pump to give better pump life in corrosive acid and aggressive media.
- Austenitic Stainless Steel – SS316 – water application of light acid-base.
Specifications
| Power | 5HP (3700 watts) |
| Discharge | 3″ (80mm) |
| Phase | 3Ø |
| Start Method | Direct |
| Efficient / Maximum Head | 23 - 5 meters |
| Efficient / Maximum Flow Rate | 160 - 1060 L/min |
| Solid Passage | 50mm |
| Weight | 40 kg |
