Product Code: L200A
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: L200A

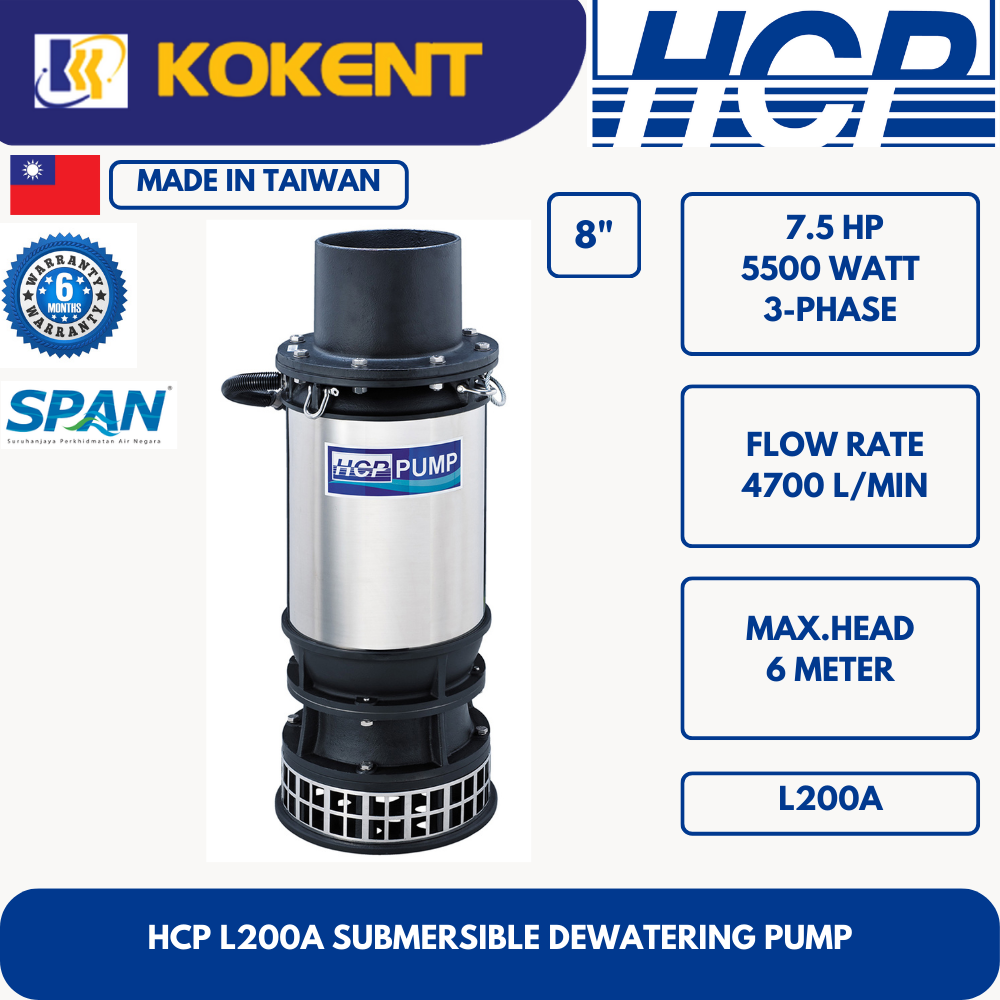

HCP L200A (made in Taiwan) is large volume submersible dewatering pump.

  • 3 phase

Features

  • Large flow capacities achieved with almost no vibration or noise by use of Axial & Mix Flow design.
  • Robust construction and compact design with a dry motor, double mechanical seal and impeller flow guide vane for high efficiency.
  • Easy handling, energy saving and low maintenance.
  • High efficiency motor directly connects to impeller to achieve best energy savings.
  • Pump manufactured with heavy duty housing, cable leads are isolated by hardened epoxy for water proofing, double mechanical seal.
  • Achieved IP68 (highest submersible water resistant protection rating), keeps pumps dust free and water proof to provide extended pump life and performance.
  • Shaft and impeller are precisely balanced for quiet and long life performance
  • 3D computerised design of impeller and vanes conductive design provide highest pump efficiency and stability.
  • Casted ALBC3 material (Aluminium Bronze) impeller, it has a great abrasion and corrosion resistance.

Applications

  • Aquiculture water pumping and drainage for large volume water applications.
  • Water supply for landscape, water features, cooling in the power plant or drainage for industrial.
  • Water extracting from rivers, lakes and reservoirs.
  • Flood control or used for large volume dewatering.
  • Others : Extraction of water from dock and river.

Limits Of Use

  • Liquid Temperature: 0~40°C
  • Submersion Depth: 30m (100ft)

Specifications

Power 7.5 HP (5500 watts)
Discharge 8″ (200mm)
Phase
Start Method Direct
Efficient / Maximum Head 4 / 6 meters
Efficient / Maximum Flow Rate 3500 / 4700 L/min
Solid Passage 22mm (7/8″)
Weight 116 kg
