Product Code: F31UF-3
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: F31UF

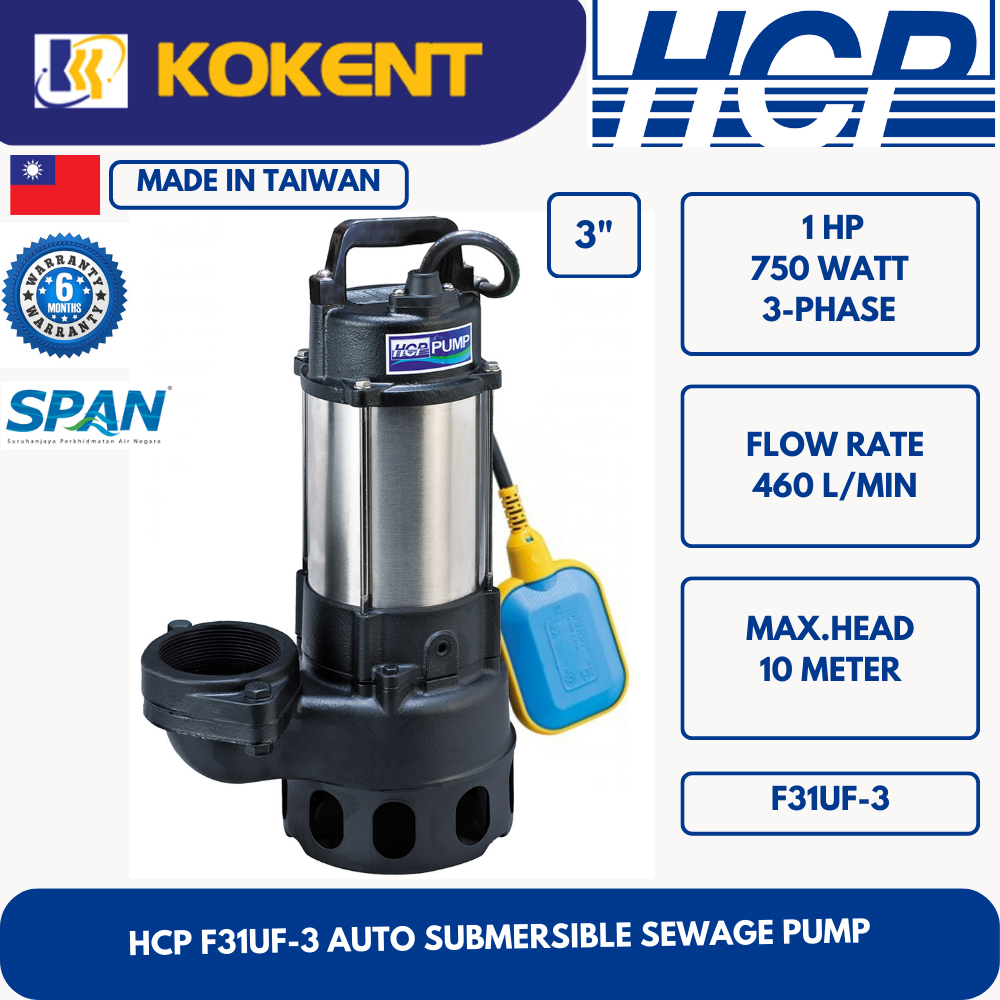

HCP F31UF (made in Taiwan) is a submersible pump for sewage water.

  • 3 phase
  • With auto float switch

Features

  • A precision manufactured motor is achieved by utilising the highest standard of quality control.
  • All rotors adopt heat treatment methods for drive shaft assembling.
  • Stator winding impregnated with varnish that is heat dried in an industrial oven.
  • Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.

Applications

  • Drainage of sewage from the building basements, hotel industry, and waste water from factories
  • Drainage of sewage from industrial process factories
  • Emptying of septic tanks, cesspits and sewage pump stations.
  • Pumping surface and drainage water from garages and sprinkler systems.

Specifications

Power 1 HP (750 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Maximum Head 6.5 / 10 meters
Efficient / Maximum Flow Rate 300 / 460 L/min
Solid Passage 30mm
Weight 18 kg
