Product Code: FN22U-1
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: FN22U

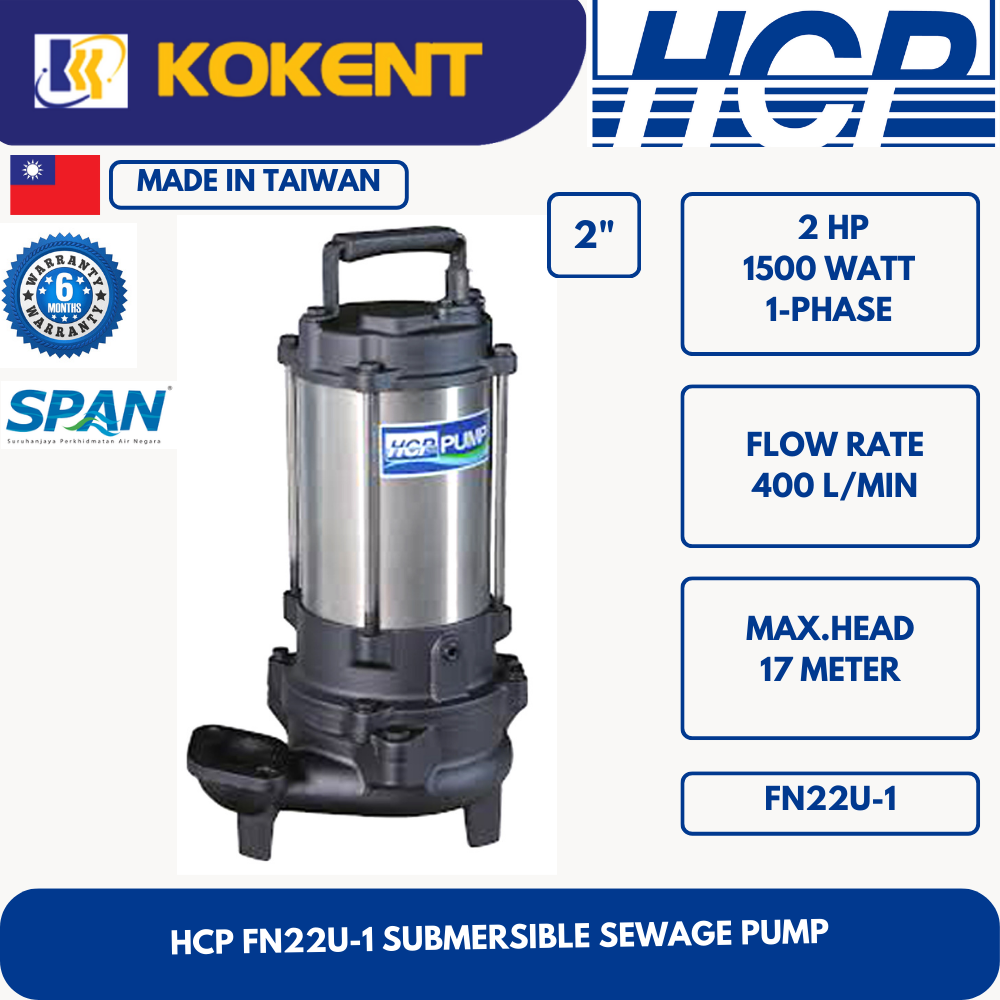

HCP FN22U (made in Taiwan) is a submersible pump for sewage water.

  • 1 phase
  • Without auto float switch

Features

  • A precision manufactured motor is achieved by utilising the highest standard of quality control.
  • All rotors adopt heat treatment methods for drive shaft assembling.
  • Stator winding impregnated with varnish that is heat dried in an industrial oven.
  • Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.

Applications

  • Drainage of sewage from the building basements, hotel industry, and waste water from factories
  • Drainage of sewage from industrial process factories
  • Emptying of septic tanks, cesspits and sewage pump stations.
  • Pumping surface and drainage water from garages and sprinkler systems.

Specifications

Power 2 HP (1500 watts)
Discharge 2″ (50mm)
Phase
Start Method Capacitor
Efficient / Maximum Head 14 / 17 meters
Efficient / Maximum Flow Rate 200 / 400 L/min
Solid Passage 35mm
Weight 30 kg
