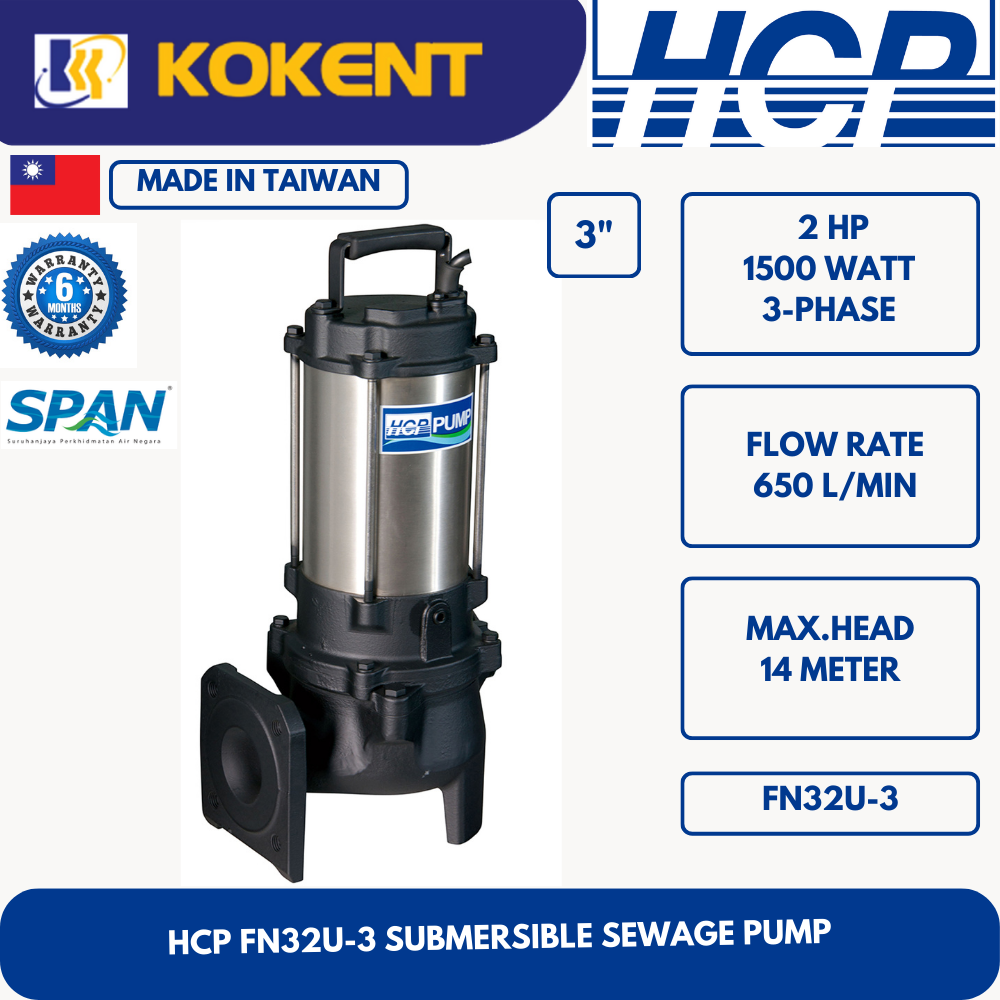

HCP SUBMERSIBLE SEWAGE PUMP FN32U-3

HCP SUBMERSIBLE SEWAGE PUMP FN32U-3
HCP SUBMERSIBLE SEWAGE PUMP FN32U-3

HCP SUBMERSIBLE SEWAGE PUMP FN32U-3

Product Code: FN32U-3
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: FN32U

HCP FN32U (made in Taiwan) is a submersible pump for sewage water.

  • 3 phase
  • Without auto float switch

Features

  • A precision manufactured motor is achieved by utilising the highest standard of quality control.
  • All rotors adopt heat treatment methods for drive shaft assembling.
  • Stator winding impregnated with varnish that is heat dried in an industrial oven.
  • Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.

Applications

  • Drainage of sewage from the building basements, hotel industry, and waste water from factories
  • Drainage of sewage from industrial process factories
  • Emptying of septic tanks, cesspits and sewage pump stations.
  • Pumping surface and drainage water from garages and sprinkler systems.

Specifications

Power 2 HP (1500 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Maximum Head 8.5 / 14 meters
Efficient / Maximum Flow Rate 400 / 650 L/min
Solid Passage 50mm
Weight 32 kg
