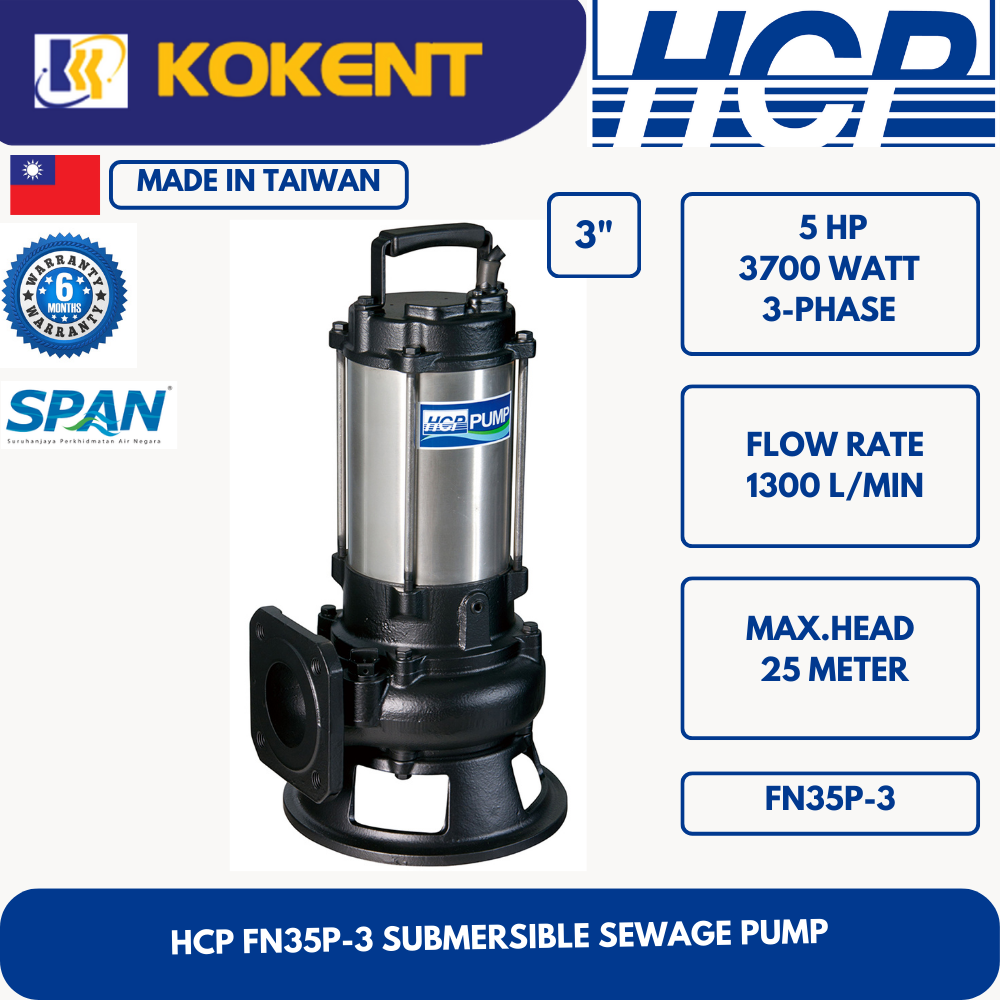

HCP SUBMERSIBLE SEWAGE PUMP FN35P-3
Product Code: FN35P-3
Availability: Pre Order
PREFER CONTACT KENT
Description
Model: FN35P
HCP FN35P (made in Taiwan) is a submersible pump for sewage water.
- 3 phase
- Without auto float switch
Features
- A precision manufactured motor is achieved by utilising the highest standard of quality control.
- All rotors adopt heat treatment methods for drive shaft assembling.
- Stator winding impregnated with varnish that is heat dried in an industrial oven.
- Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.
Applications
- Drainage of sewage from the building basements, hotel industry, and waste water from factories
- Drainage of sewage from industrial process factories
- Emptying of septic tanks, cesspits and sewage pump stations.
- Pumping surface and drainage water from garages and sprinkler systems.
Specifications
| Power | 5 HP (3700 watts) |
| Discharge | 3″ (80mm) |
| Phase | 3Ø |
| Start Method | Direct |
| Efficient / Maximum Head | 19 / 25 meters |
| Efficient / Maximum Flow Rate | 600 / 1300 L/min |
| Solid Passage | 35mm |
| Weight | 35 kg |
