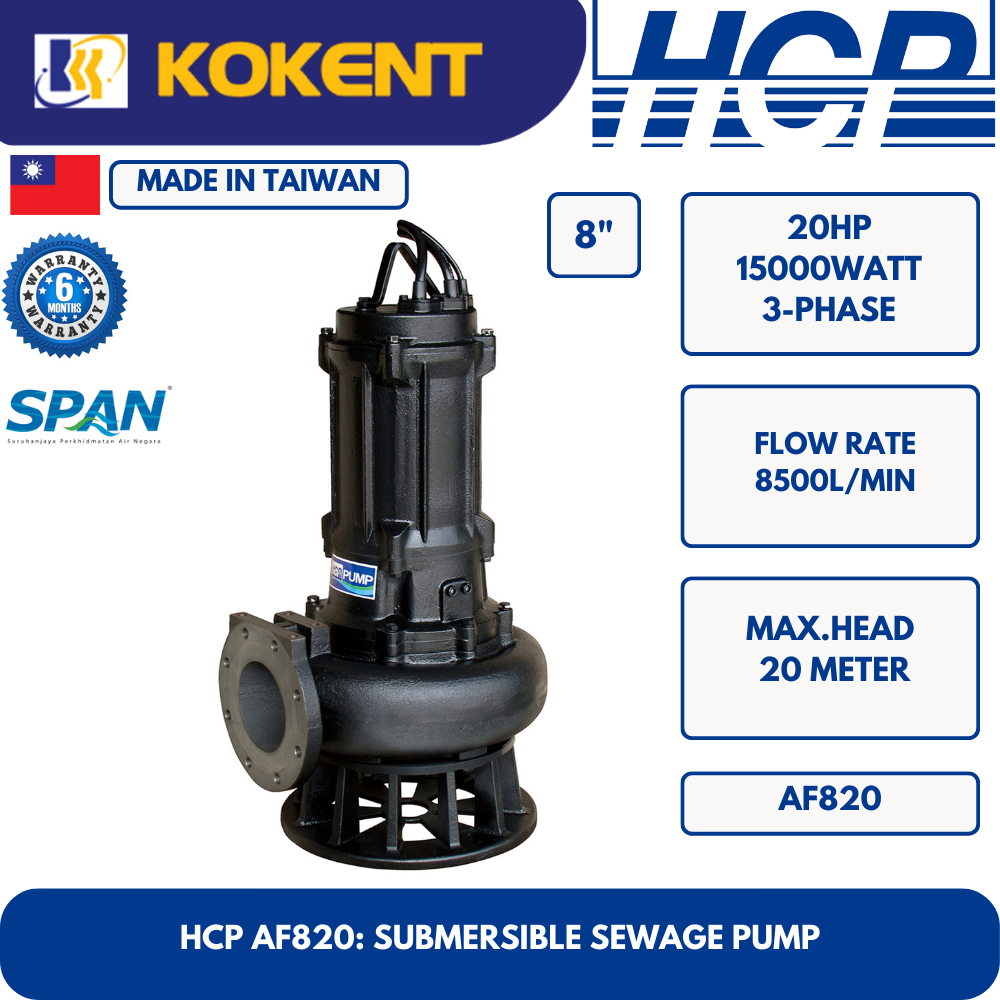

HCP SUBMERSIBLE SEWAGE WATER PUMP AF820
Product Code: AF820
Availability: Pre Order
PREFER CONTACT KENT
Description
Model: AF820
HCP AF820 (made in Taiwan) is a submersible pump for sewage water.
- 3 phase
Features
- International standard design : cable, auto-cut, dry-motor, silicon carbide mechanical seal, high grade cast iron offering highest quality and performance.
- P/U/E multiple impeller designs to handle sewage solids and/or fibrous substances.
- Superior abrasion resistant mechanical seal manufactured with silicon carbide to ensure the best seal effect.
- Oil lip seal mounted outside of seal chamber stops solids gathering around seal faces.
- Full range offering low to high head and flow capabilities, with compact and easy installation.
- Available with Guide Rail System, which allows automatic remote connection and disconnection without entering the pit.
Applications
- Drainage of waste water from the attenuation tank, purifying tank and sewage tank in water treatment plant.
- Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
- Sewage management, accumulated water, septic tank, stock farm.
Specifications
| Power | 20 HP (15000 watts) |
| Discharge | 68″ (200mm) |
| Phase | 3Ø |
| Start Method | Direct |
| Efficient / Maximum Head | 13 / 20 meters |
| Efficient / Maximum Flow Rate | 4500 / 8500 L/min |
| Solid Passage | 70mm |
| Weight | 232 kg |
