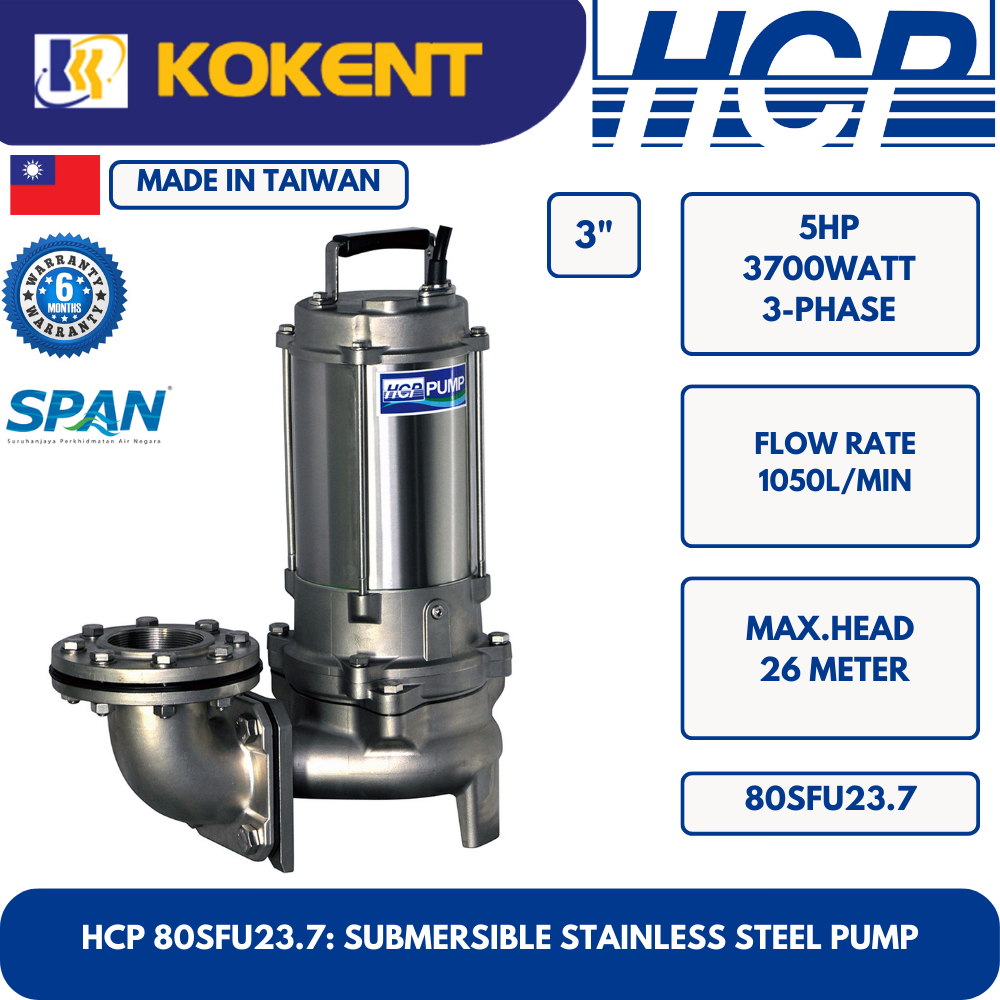

HCP SUBMERSIBLE STAINLESS STEEL WATER PUMP 80SFU23.7

HCP SUBMERSIBLE STAINLESS STEEL WATER PUMP 80SFU23.7
HCP SUBMERSIBLE STAINLESS STEEL WATER PUMP 80SFU23.7

HCP SUBMERSIBLE STAINLESS STEEL WATER PUMP 80SFU23.7

Product Code: 80SFU23.7
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: 80SFU23.7

HCP 80SFU23.7 (made in Taiwan) is a submersible stainless steel SS316 pump for sea water, light acid & corrosive water.

  • SS316
  • 3 phase
  • Without auto float switch
  • Former model: SF35U

Features

  • Best structure design, has a dry motor, IP68, double mechanical seals, equipped with an auto-cut protection, pump casting, outer cover is stainless steel, and acid-resistant silicon carbide seals.
  • The stainless series is suitable for all light acid, corrosive and/or sea water application fluid in pH values between 4 to 10pH. For strong acidity and alkalinity applications, please use the specified chemical pump.
  • Investment Casting Precision casting with the use of an advanced stainless investment casting method that produces the highest quality with a smooth surface finish.
  • Viton O-ring Viton O-rings are used throughout the pump to give better pump life in corrosive acid and aggressive media.
  • Austenitic Stainless Steel – SS316 – water application of light acid-base.

Specifications

Power 5HP (3700 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Maximum Head 17.5 / 26 meters
Efficient / Maximum Flow Rate 500 / 1050 L/min
Solid Passage 50mm
Weight 40 kg
