HCP SUBMERSIBLE WASTE WATER PUMP 100AL25.5
Product Code: 100AL25.5
Availability: Pre Order
PREFER CONTACT KENT
Description
Model: 100AL25.5

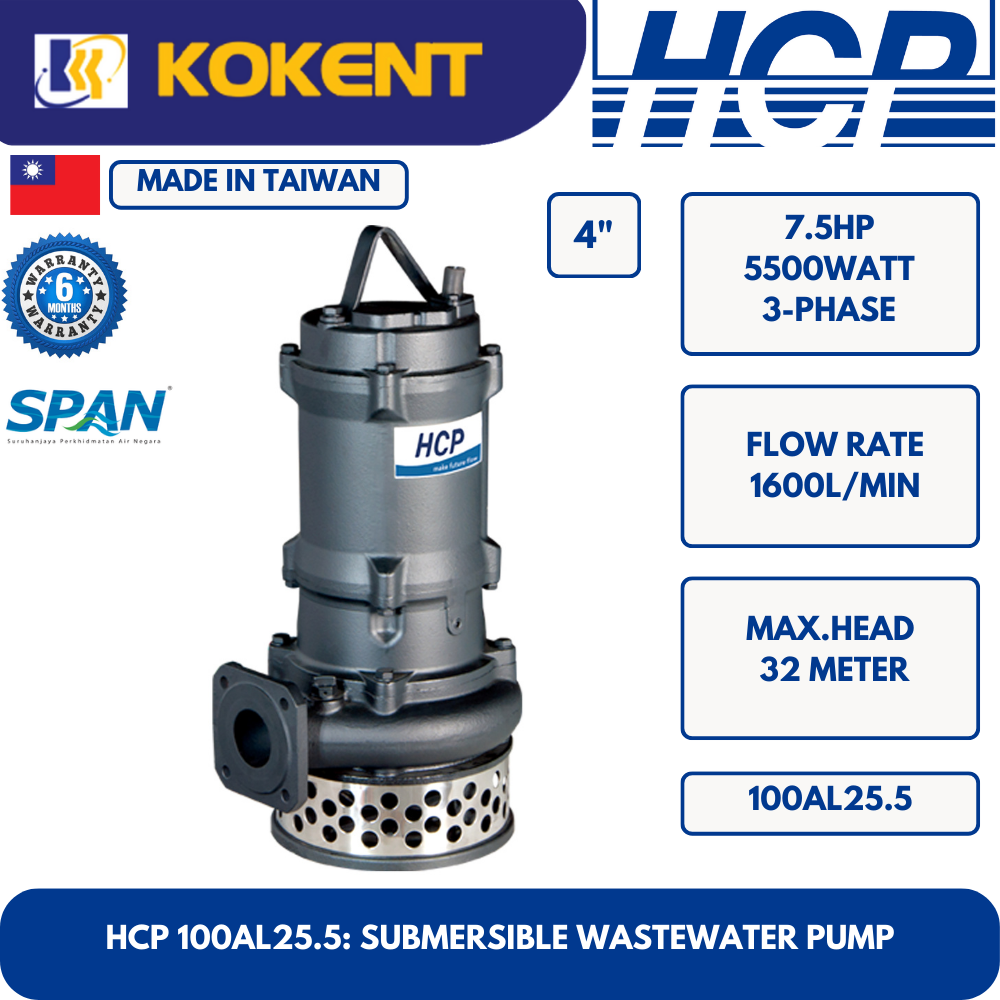

HCP 100AL25.5 is a submersible wastewater pump for extraction of water from river and lake.
- 3 phase
Features
- Equipped with Auto-cut, silicon carbide double mechanical seal, epoxy cable base treatment.
- Entire cast iron structure and compact design.
- Available with guide rail system.
- High head and efficiency for wide range design.
Pressure – Reducing Design：
100AL25.5 & 100AL27.5 pump’s impeller were designed in high head. Pressure reducing design will release the high pressure in volute casing when operating.
Applications
- Waste water drainage for all industries.
- Pumping surface water, drainage water and flood water.
- Extraction of water from river and lake.
Specifications
| Power | 7.5 HP (5500 watts) |
| Discharge | 4″ (100mm) |
| Phase | 3Ø |
| Start Method | Direct |
| Efficient / Max Head | 21.5 / 32 meters |
| Efficient / Maximum Flow Rate | 1000 / 1600 L/min |
| Solid Passage | 20mm |
| Weight | 75 kg |
