HCP SUBMERSIBLE WASTE WATER PUMP 80AL23.7
Product Code: 80AL23.7
Availability: Pre Order
PREFER CONTACT KENT
Description
Model: 80AL23.7

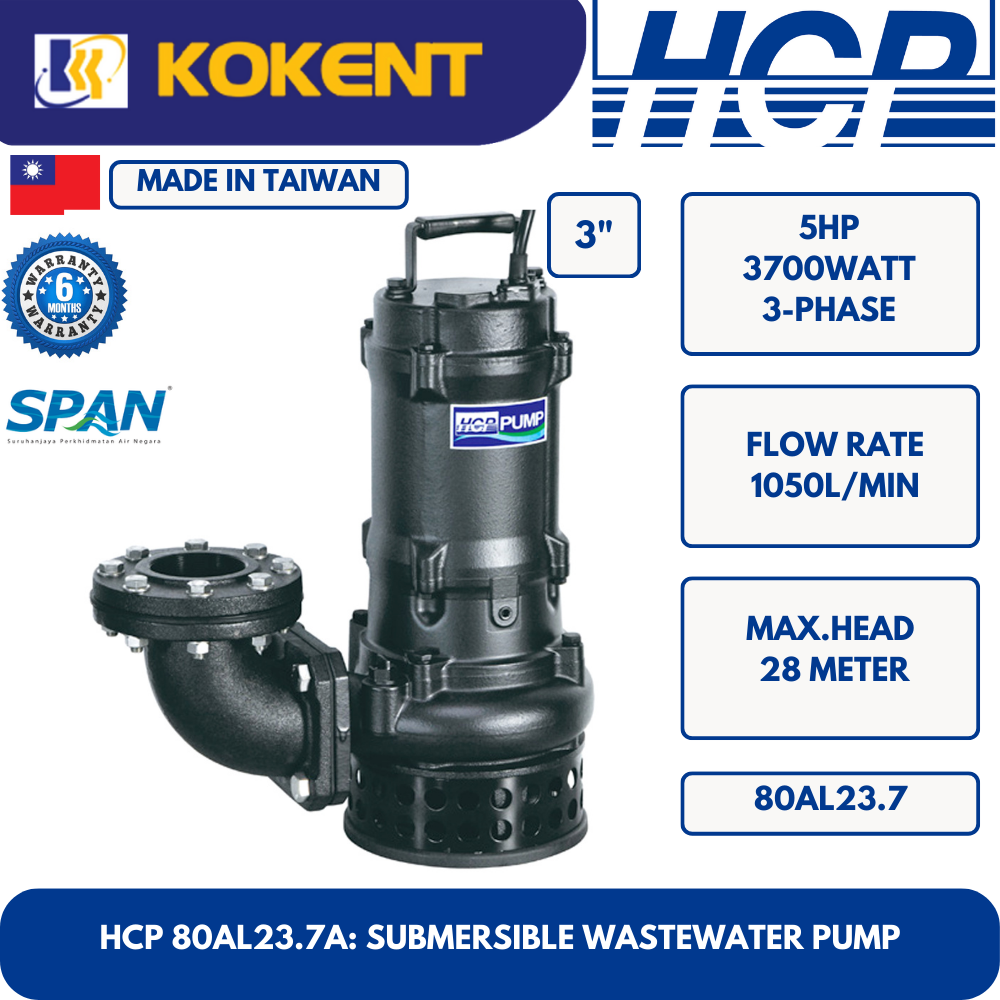

HCP 80AL23.7A is a submersible wastewater pump for extraction of water from river and lake.
- 3 phase
Features
- Equipped with Auto-cut, silicon carbide double mechanical seal, epoxy cable base treatment.
- Entire cast iron structure and compact design.
- Available with guide rail system.
- High head and efficiency for wide range design.
Pressure – Reducing Design：
100AL25.5 & 100AL27.5 pump’s impeller were designed in high head. Pressure reducing design will release the high pressure in volute casing when operating.
Applications
- Waste water drainage for all industries.
- Pumping surface water, drainage water and flood water.
- Extraction of water from river and lake.
Specifications
| Power | 5 HP (3700 watts) |
| Discharge | 3″ (80mm) |
| Phase | 3Ø |
| Start Method | Direct |
| Efficient / Max Head | 20.5 / 28 meters |
| Efficient / Maximum Flow Rate | 600 / 1050 L/min |
| Solid Passage | 20mm |
| Weight | 49 kg |
