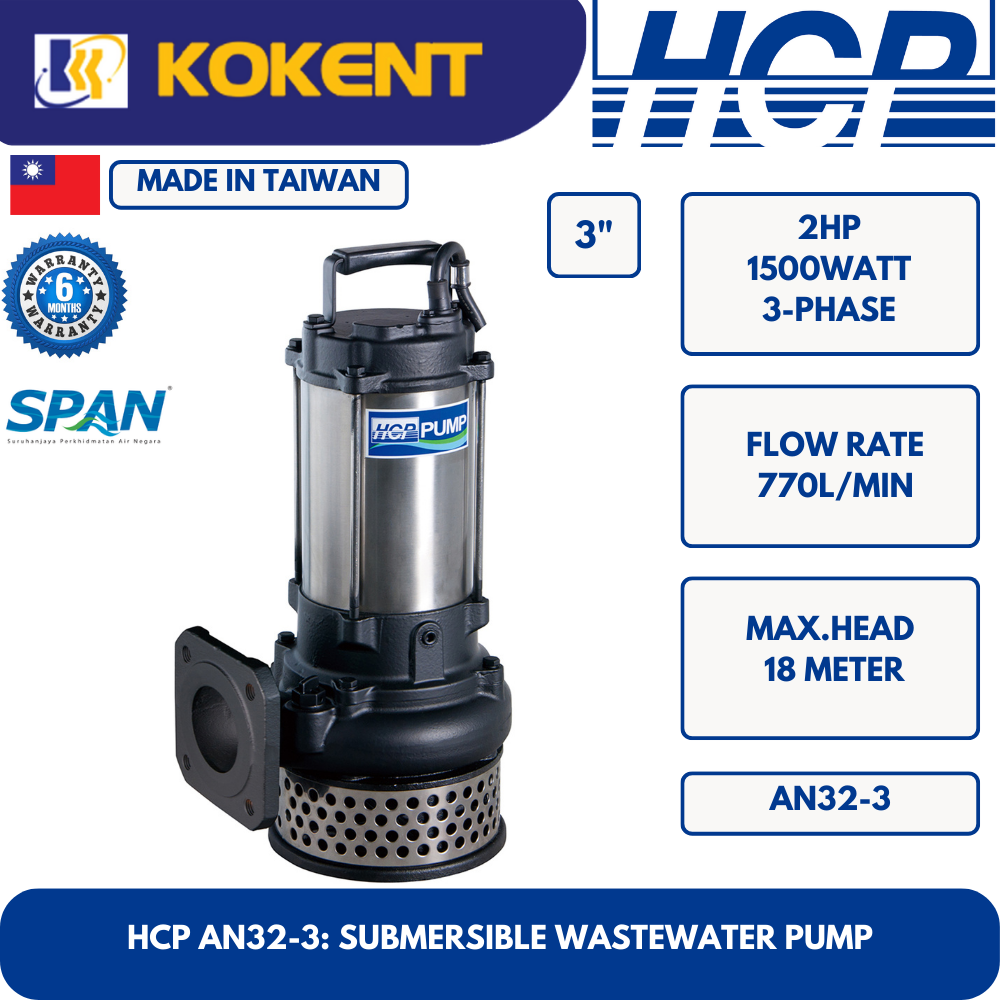

HCP SUBMERSIBLE WASTE WATER PUMP AN32-3

HCP SUBMERSIBLE WASTE WATER PUMP AN32-3
HCP SUBMERSIBLE WASTE WATER PUMP AN32-3

HCP SUBMERSIBLE WASTE WATER PUMP AN32-3

Product Code: AN32-3
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: AN32

HCP AN32 (made in Taiwan) is a submersible pump for general waste water.

  • 3 phase
  • Without auto float switch

Features

  • A precision manufactured motor is achieved by utilising the highest standard of quality control.
  • All rotors adopt heat treatment methods for drive shaft assembling.
  • Stator winding impregnated with varnish that is heat dried in an industrial oven.
  • HCP’s professional assembly line, complimented with a synthesised production test, ensures the highest level of final pump quality.
  • Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.

Applications

  • Waste water
  • Sump drainage
  • Flood control
  • Dewatering for fish pond or basement and cellars

Limits of use

  • Liquid Temperature: 0~40°C
  • Submersion Depth: 30m (100ft)

Specifications

Power 2 HP (1500 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Max Head 10.5/18 meters
Efficient / Maximum Flow Rate 500/770 L/min
Solid Passage 10.5mm
Weight 29 kg
