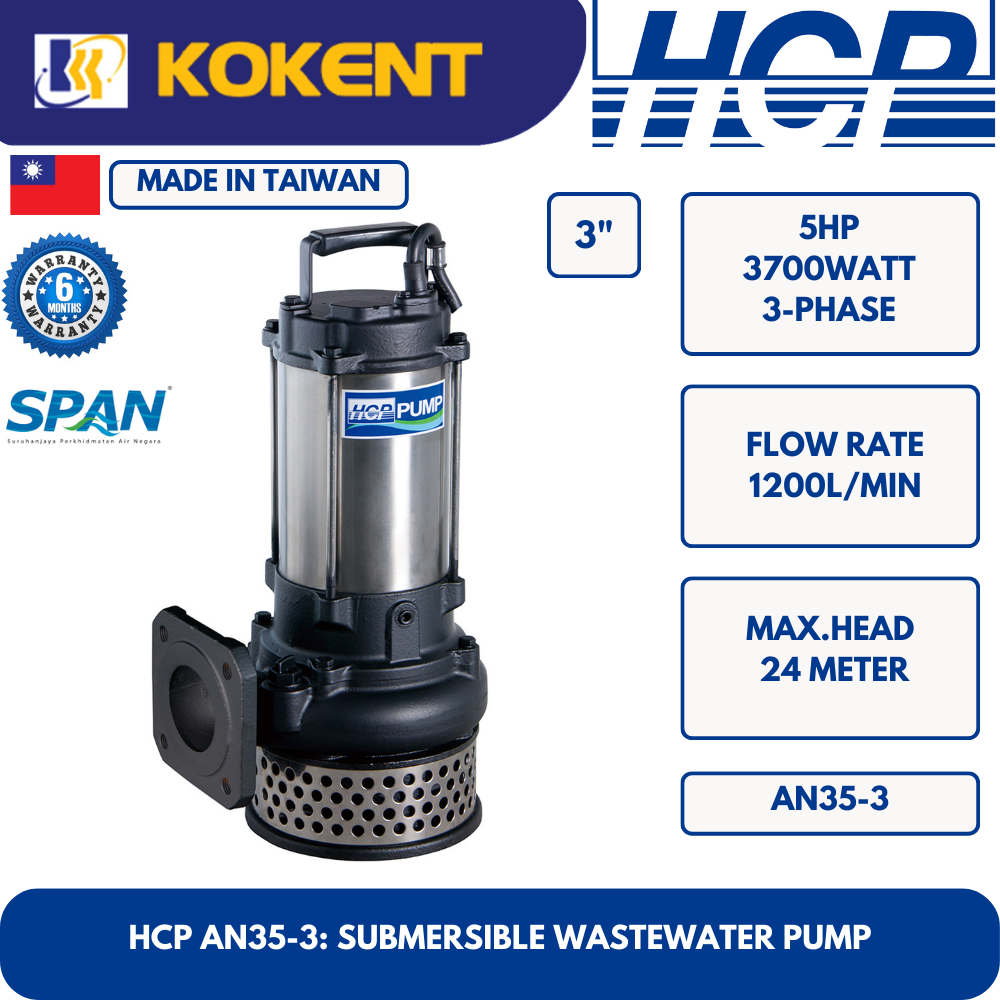

HCP SUBMERSIBLE WASTE WATER PUMP AN35-3
Product Code: AN35-3
Availability: Pre Order
PREFER CONTACT KENT
Description
Model: AN35
HCP AN35 (made in Taiwan) is a submersible pump for general waste water.
- 3 phase
- Without auto float switch
Features
- A precision manufactured motor is achieved by utilising the highest standard of quality control.
- All rotors adopt heat treatment methods for drive shaft assembling.
- Stator winding impregnated with varnish that is heat dried in an industrial oven.
- HCP’s professional assembly line, complimented with a synthesised production test, ensures the highest level of final pump quality.
- Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.
Applications
- Waste water
- Sump drainage
- Flood control
- Dewatering for fish pond or basement and cellars
Limits of use
- Liquid Temperature: 0~40°C
- Submersion Depth: 30m (100ft)
Specifications
| Power | 5 HP (3700 watts) |
| Discharge | 3″ (80mm) |
| Phase | 3Ø |
| Start Method | Direct |
| Efficient / Max Head | 19/24 meters |
| Efficient / Maximum Flow Rate | 600/1200 L/min |
| Solid Passage | 20mm |
| Weight | 35 kg |
