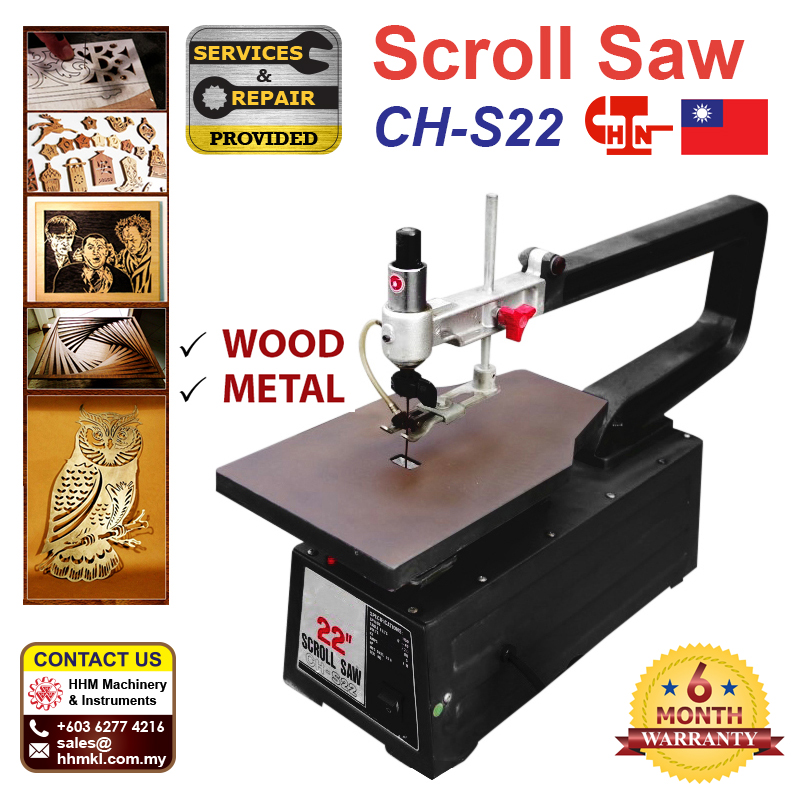

HHM Scroll Saw CH-S22

HHM Scroll Saw CH-S22
HHM Scroll Saw CH-S22

HHM Scroll Saw CH-S22

Product Code: CH-S22
Availability: In Stock
RM0.00
Loading ...
Share:

Scroll Saw CH-S22

Features:

1. This scoll saw has a 22 throat capacity and has a large surface area for holding workpiece
2. Fitted with air pump to keep the dust away from the cutting area

Technical Specification:

MODEL CH-S22
Max. Depth of Cut Wood: 40 mm, Metal: 10 mm
Throat Capacity 560 mm
Length of Stroke 20 mm
Speeds 950 rpm (50 Hz), 1150 rpm (60 Hz)
Size of Table 200 x 350 mm
Table Tilts 45° (L) ~ 45° (R)
Power 1/6 HP, 124W, 6P, single phase
Net Weight 22 kg
Gross Weight 23 kg
CUFT 3.38’
Machine Dimension 761 x 48 x 261 mm
