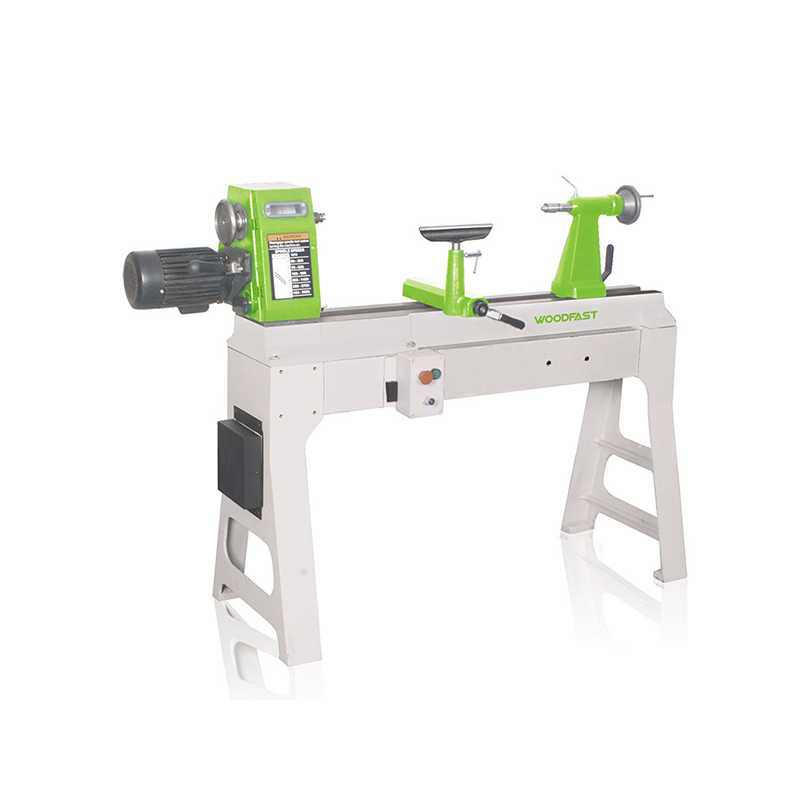

HHM Wood Lathe C1000X
Wood Lathe C1000X
All new C-Series woodlathes have been designed to suit the needs of serious woodturners by offering increased capacity, strong vibration free construction and the well proven European electronic speed control system.
In conjunction with the standard cast iron Outboard Turning attachment, the Headstock can be quickly rotated and locked in a comfortable and unrestricted position when turning larger platters and bowls.
The heavy cast base stand with a wide footprint ensures greater stability even under
heavy load. This woodlathe definately requires your consideration.
Features:
1. Cast iron bed & legs for reducing vibration
2. Heavy swivel & off center headstock
3. AC motor & France brand variable speed electronic inverter
4. Polished handwheel brake
5. 3″ Faceplate & 6″Toolrest
Technical Specification:
| MODEL | C1000X |
|---|---|
| Swing Over Bed Diameter | 520 mm |
| Distance Between Centres | 950 mm |
| Spindle Speeds | Variable 50-3850 rpm |
| Spindle Taper | MT2 |
| Sleeve Adjustment | 100 mm |
| Indexing Position | 24 |
| Outboard Turning | 720 mm |
| Headstock Rotation | 90° |
| Motor Power Output | 1.5 HP |
| Net/Gross Weight | 194/240 kgs |
| Package Size | 1700x520x595 mm / 860x580x355 mm |
| Units per 20′ Container | 37 pcs |
