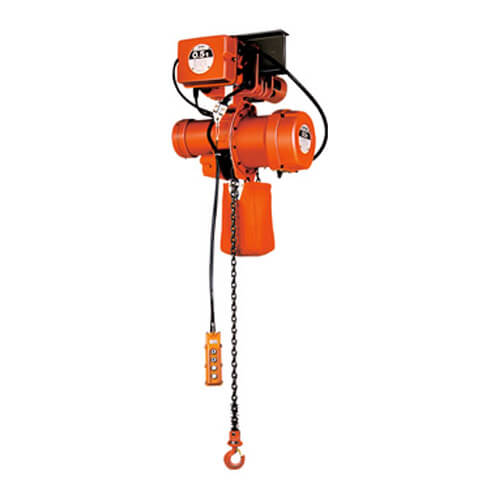

Electric chain hoist (3-phase 200V)  MH-5​

Designed to offer high quality and superb safety features, the MH-5 Series can be used with various optional items, including an overload protection unit, a radio unit, and an inverter.

Features:

  • The heavy-duty MH-5 can be used in various work environments.
  • A wide array of optional items is available for the MH-5, including an overload protection unit, rustproof chains, a radio unit, and an inverter.

Main application

  • Hazardous work environments
  • Outdoor work (Rainproof model is optional.)
  • Work over extended periods

Technical Spec

Structure

Model Rated load (t) Standard lift (m) Hoisting Rated time (min)
Speed (m/min) Motor output (kW)
50Hz 60Hz 50Hz 60Hz
MH5005 0.5 4 8.6 10 0.83 1 30
MH5010 1 6.2 7.3 1.17 1.4
MH5020 2 6.7 7.9 2.5 3
MH5030 3 4.4 5.2
MH5050 5 2.6 3.1
MH5075 7.5 1.7 2.1
MH5100S 10* 1.3 1.6
MH5100W 10^ 2.6 3.1 2.5×2 3×2
MH5150 15 1.7 2.1
MH5200 20 1.3 1.6

Structure


  1. Mechanical Brake: A mechanical brake is provided in all Nitchi-Matic models. Used in combination with a solenoid brake, it ensures safe and thorough braking operation.
  2. Solenoid Brake: Nitchi’s original direct-current solenoid brake is highly robust, effective, and durable.
  3. Motor: Designed exclusively for use in electric chain hoists, this high-performance, high-torque motor can withstand frequent use over a long period of time.
  4. Load Sheave and Chain Guide: Manufactured through high-precision machining and advanced heat treatment, the load sheave and chain guide together ensure smooth winding of load chains, thus contributing to their extended service life.
  5. Over-Winding Protector: Equipped with a limit switch, the over-winding protector automatically shuts down the control circuit when the lifting or lowering operation has reached its limits.
  6. Load Chain: Produced through an integrated manufacturing system under strict quality control, Nitchi’s super-strong and wear-resistant load chains made from special alloy steel achieve a high level of work safety. For work environments requiring highly corrosion-resistant chains, use of NN chains is recommended.
  7. Negative Phase Protector: When three-phase power cables are connected in a negative phase, the control circuit is automatically shut off and lifting and lowering are disabled to protect the hoist from damage.
    Note: A negative phase refers to a situation in which two three-phase power cables in an electric chain hoist are reversely connected, thus causing the motor to rotate in the opposite direction.
  8. 24V Low-Voltage Control Circuit: The control circuit is designed to run on low voltage to ensure work safety.
  9. Oil Bath Lubrication System: By providing increased gear-cooling effect, this system allows a hoist to withstand frequent operation over a long period of time.
  10. Bottom Hook: A built-in thrust bearing ensures smooth rotation of the hook.
  11. Push-Button Switch: A small, lightweight, and highly insulated rainproof push-button switch is used. Two-speed models employ a dual-stage push switch.
