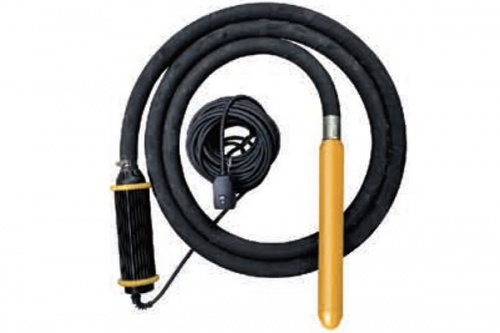

High-Frequency Concrete Vibrator
Product Code: High-Frequency Concrete Vibrator
Availability: Pre Order
Product Detail
CNPV
| Model | CNPV | |
| Vibrating Head Diameter mm | 42 | 52 |
| Head Length mm | 406 | 395 |
| Hose Length m | Customerized (default 4) | Customerized (default 4) |
| Cable Length | 15 | 15 |
| Net Weight | 11(24.2) | 13(28.66) |
| Vibration Frequency Hz | 200 | 200 |
| Speed rpm | 12000 | 12000 |
| Amplitude in Air mm | >1.5 | >1.5 |
| Centrifugal Force N(lbs) | 3200(719) | 5000(1124) |
| Input Voltage V/Hz | AC230/50 | AC230/50 |
| Input Power kW/ | 1.2 | 1.5 |
| Packing Size | 58*50*15 | 58*50*15 |
