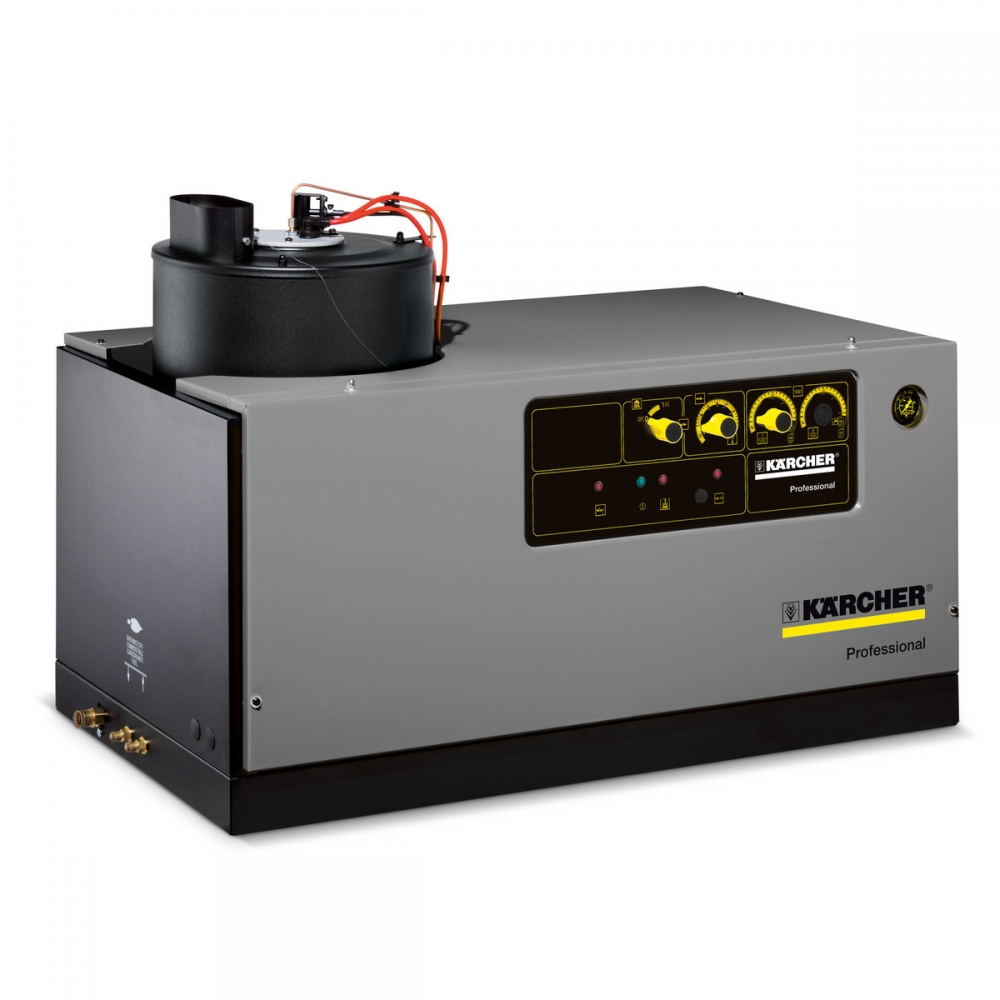

HIGH PRESSURE WASHER HDS 9/14-4 ST
Product Code: HDS 9/14-4 ST
Availability: In Stock
RM0.00
High-pressure cleaning system which offers an extraordinary high level of safety with automatic pressure relief, flue gas temperature monitor, an innovative dry run cut-out in the float tank as well as an SDS hose which absorbs pressure surges. Used with Eco-Line boilers, these units comply with the latest BimSch emission regulations.
FEATURES AND BENEFITS
| Water-cooled four-pole electric motor |
|
| Burner engineering |
|
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 500 - 930 |
| Working pressure (bar/MPa) | 30 - 140 / 3 - 14 |
| Max. temperature (supply 12°C) (°C) | 155 - 80 |
| Connection load (kW) | 6.4 |
| Heating oil or gas consumption, full load (kg/h) | 5.8 |
| Protection (A) | 16 |
| Weight (kg) | 140 |
| Dimensions (L × W × H) (mm) | 1110 x 565 x 690 |
Equipment
- Soft Damping System (SDS)
- System pressure relief
- Flame monitoring
- Prepared for Servo Control
- Ready for remote control
