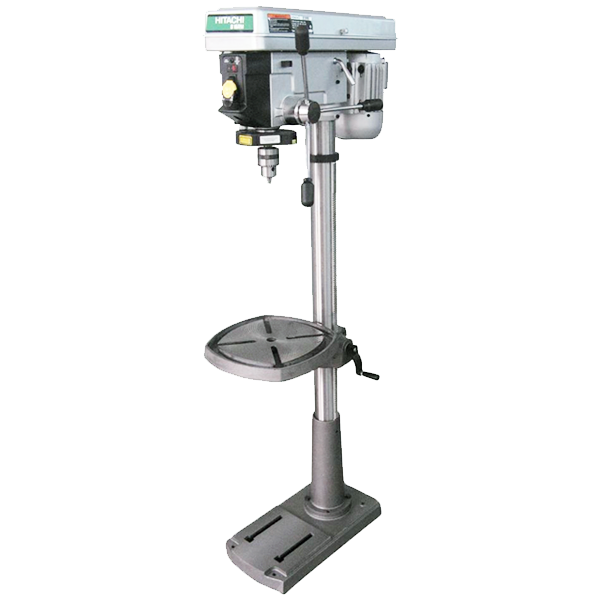

Hitachi Bench Drill with Laser Marker 16mm, 750W, 75kg B16RM

Hitachi Bench Drill with Laser Marker 16mm, 750W, 75kg B16RM
Hitachi Bench Drill with Laser Marker 16mm, 750W, 75kg B16RM

Hitachi Bench Drill with Laser Marker 16mm, 750W, 75kg B16RM

Product Code: B16RM
Availability: Pre Order
Loading ...
Share:

Model: B16RM

Features

  • LASER guide : X-Y axial projecting lines for pre-alignment of drilling location.
  • Depth adjustment gauge for accurate drilling of repetitive-depth holes.
  • Durable cast iron table : Surface tilts 45degree right of left.
  • 12-stage speed : 210 - 2580/min
  • Quick-belt tension release knob for fast speed setting.
  • Built-in light.

Specifications

Capacity : Chuck 16mm (5/8")
Power Input 750W
Laser ClassII, Maximum Output <1mW
No Load Speed: 50Hz 250 / 340 / 510 / 600 / 650 / 990 / 1550 / 1620 / 1630 / 2620 / 3100 /minutes
Spindle Taper JT3
Swing 380mm (15")
Spindle Travel 85mm (3-1/8")
Table Size 336mm x 336mm
Table Tilt 45degree Right or Left
Base 279mm x 518mm (11" x 63-1/4")
Overall Height 1618mm (63-1/4")
Weight 75kg
