Product Code: HKD0202 (Made in Taiwan)
Availability: Pre Order
Loading ...
Share:

Model: HKD0202 (Made in Taiwan)

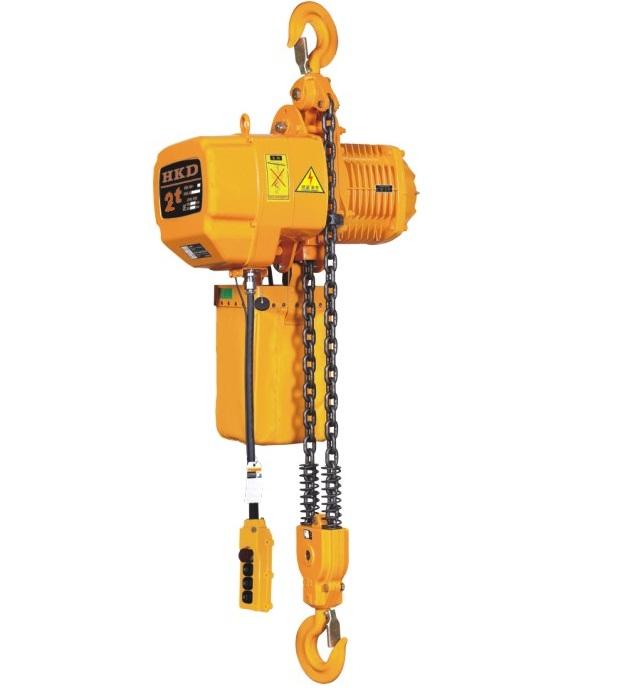

2ton x 5m electrical chain hoist with single phase motor.

Price inclusives  6%GST.

**24 months warranty on motor.
**Original Japan Chain.
**Waterproof Pendant Control IP65.

Features

  • Unique design permits the hoist to be hooked with minimum consumption of head room.
  • Each hoist is extensively tested before delivery.
    a) Dynamic load test using 125% of ites rated capacity.
    b) Overload voltage test.
    c) Reduced voltage test.
    d) Operation test.
  • Features of Electrical Motor
    a) Class F insulation : Resistance of up to 150°C motor winding temperature.
    b) Aluminium Motor Housing : Light weight and provides good heat dissipation.
  • Motor Brake : Instant motor brakes as soon as the electrical power is cut off.
  • Weight Limit Switch
  • 48V Transformer Device: Use to prohibit unexpected condition caused by electric leakage and guarantees the safe use while raining.
  • Link Chain: Japan-made FEC Grade 80 super alloy steel.

Specifications

Voltage Single Phase, 220V, 50Hz
Lifting Capacity 2 tons
Lifting Height 5 meters
Lifting Speed 3.3 (m/min)
Hoisting Motor 1.5kW
Load Chain Ø7.1mm
Chain Fall 2
Duty Rating 35%
Weight 71kg

Accessories Included



  • Chain bag
  • Control cable 3meters
  • Push-button switch
