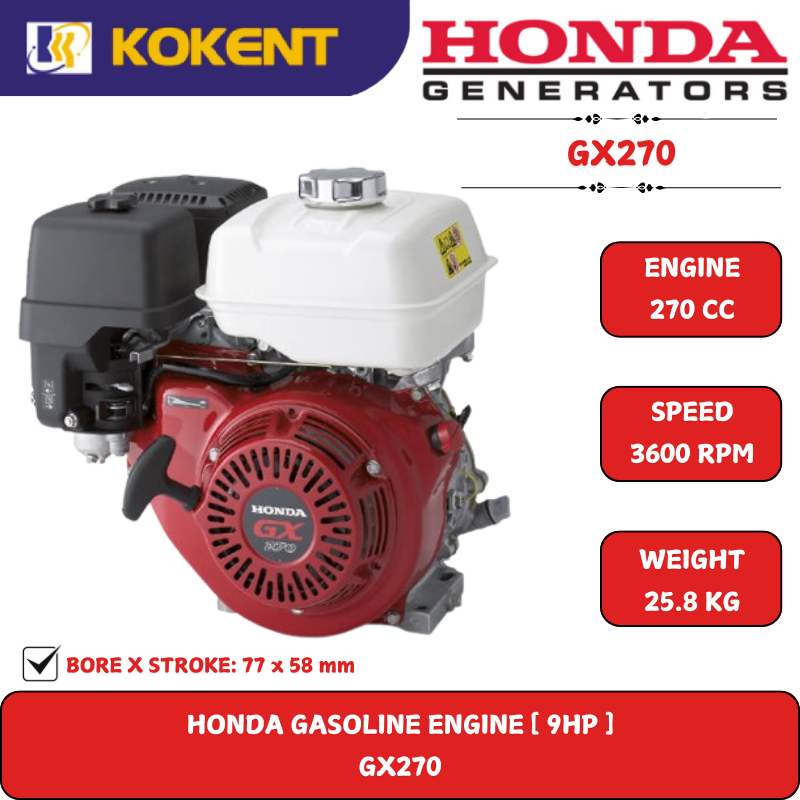

HONDA GASOLINE ENGINE [ 9HP.270CC.3600RPM.25KG ] GX270

The GX270 engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications.

Engine features:

• The OHV design enhances combustion efficiency
• A variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emissions performance.
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components ensure reliable long-term use
• Meets world's most stringent environmental legislation
• Guaranteed low fuel and oil consumption
• Reduced vibration and noise level

Engine type : 4-stroke single cylinder
                    OHV petrol engine
                    25° inclined cylinder
                    horizontal shaft

Cylinder sleeve type : Cast iron sleeve

Bore x Stroke : 77 x 58 mm

Displacement : 270 cm³

Compression ratio : 8.5 : 1

Net power : 6.3 kW ( 8.4 HP ) / 3600 rpm

Cont. rated power : 4.6 kW ( 6.2 HP ) / 3000 rpm
                             5.1 kW ( 6.8 HP ) / 3600 rpm

Max. net torque : 19.1 Nm ( 1.94 kgfm ) / 2500 rpm

Ignition system : Digital CDI with variable ignition timing

Starter : Recoil (el. start optional)

Fuel tank capacity : 5.3 Liter

Fuel cons. at cont. rated power : 2.4 L/h - 3600 rpm

Engine oil capacity : 1.1 Liter

Dimensions (L x W x H) : 381 x 428 x 422 mm

Dry weight : 25.8 kg
