HOSE CONNECTION SET

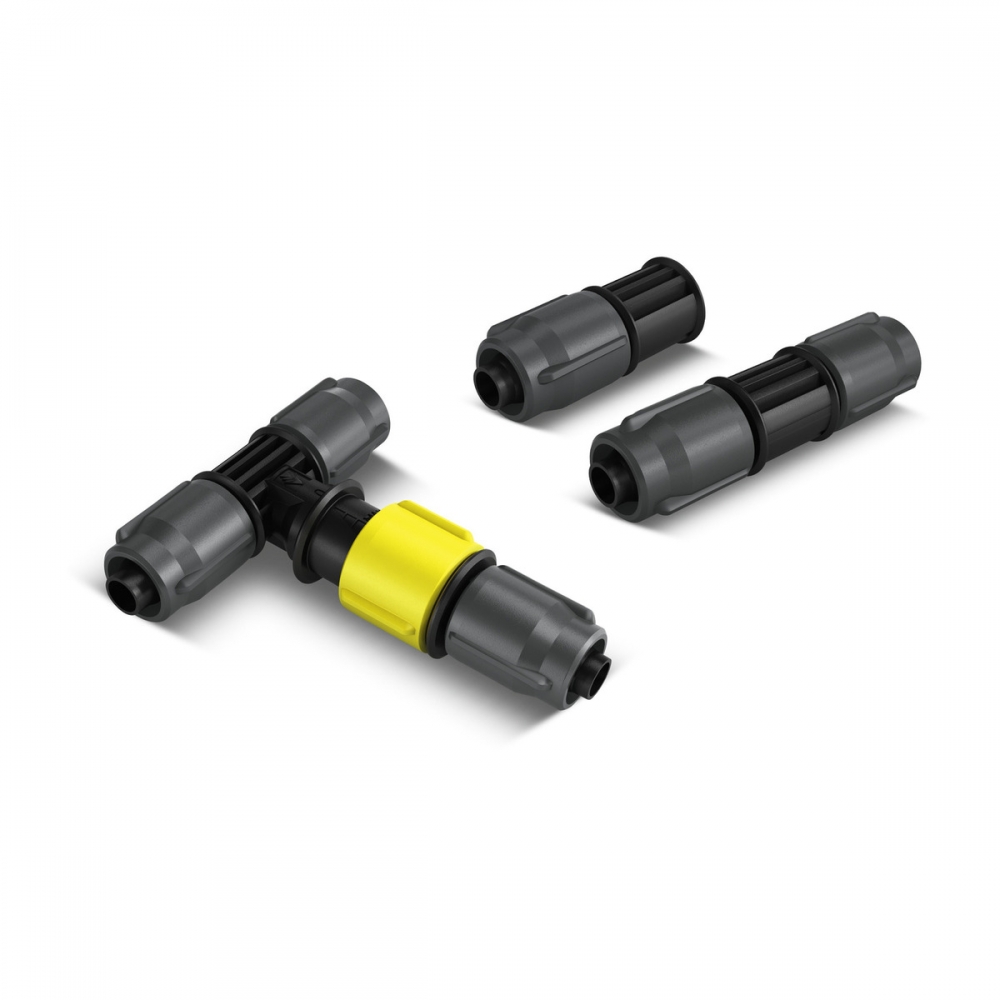

The connection kit is an expansion kit for the Kärcher Rain System® efficient watering system and contains 4 T-pieces, 4 I-pieces and 5 end pieces. The T-piece connects three Kärcher Rain System® hoses or soaker hoses together, the I-piece connects two. The lateral tee of the T-piece is volume-adjustable and thus pressure-adjustable and is ideal for connection of the soaker hose. The I-piece is most suitable for affixing the soaker hose to the end of the Kärcher Rain System® hose or to connect two Kärcher Rain System® hoses. With the help of the end piece, the laid or shortened hoses can be sealed at any point. Installation of the hoses does not require tools and is extremely easy: The hose is simply pushed onto the connection or end piece and fixed with the aid of the union nut. The Kärcher Rain System® can be adapted to almost any garden and works perfectly with the SensoTimer for nee
FEATURES AND BENEFITS
| Extension kit for the Kärcher Rain System® |
|
| T-piece with adjustable lateral tee |
|
| T-piece with three connections |
|
| Hose stop |
|
| I-piece with two connections |
|
| Ergonomically shaped |
|
SPECIFICATIONS
Technical data
| Max. pressure (bar) | 4 |
| Weight (kg) | 0.4 |
| Dimensions (L × W × H) (mm) | 103 x 101 x 33 |
Equipment
- Water volume can be regulated
- T-connectors with water flow regulation, 4 piece(s)
- I-connectors, 4 piece(s)
- Hose stops, large, 5 piece(s)
