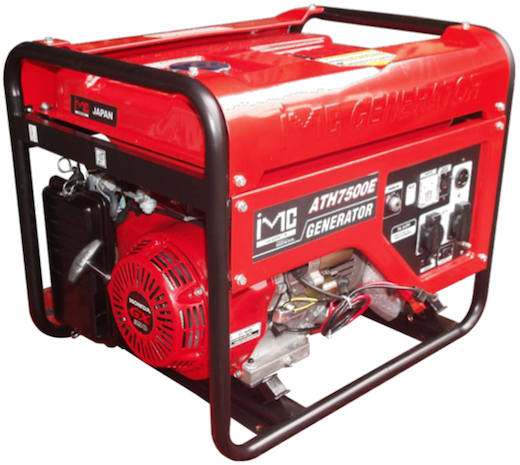

IMC Honda Engine Generator GX390 5.0kVA 25L 80kg ATH7500E
IMC Honda Engine Generator GX390 5.0kVA 25L 80kg ATH7500E

IMC Honda Engine Generator GX390 5.0kVA 25L 80kg ATH7500E

Product Code: ATH7500E
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: ATH7500E
5000W generator with Honda petrol engine GX390.

Price inclusives 6%GST.

Features

  • Large air filter
  • Exhaust muffler
  • 25L fuel tank

Specifications

Engine Brand   Honda
Engine Model GX390
Engine Displacement    389 cc (cm3)
Engine Maximum Output   8.7kW / 11.7HP
Engine Type Air Cooled, 4-cycle, OHV Gasoline Engine
Engine Oil Alert System Standard
Engine Ignition System Transistor (C.D.I.)
Engine Start Coil Start
Generator Alternator Self-Exciting, 2-Pole, Field Rotating Type, Single Phase
Voltage Regulator AVR
Phase Single
AC Max. Output 5.5kW / 50Hz
AC Rated Output 5.0kW / 50Hz
Rated Voltage 220V / 50Hz
DC Output 12V-8.3A (Receptacle)
Rated Power Factor 1 cosΦ
Pilot Lamp Standard
Volt Meter  Standard
Fuel Tank Capacity  25 Liters
Continuous Operating Hours    8 Hours
Dimensions (L x W x H)  710mm x 540mm x 570mm
Dry Weight  80.5 kg

Standard Accessories

  • Instruction manual
  • Engine Manual
