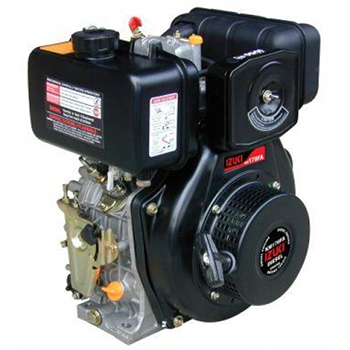

IZUKI DIESEL ENGINE IZ178FA

AIR-COOLED DIESEL

* Its many special merits now include IZUKI'S latest gentle gears

  The total fie expertise only a complete diesel maker can provide

  Izuki first develop the miniaturized fuel injection system,the world's smallest.We have since raised it to a level

   of efficiency that ensures you maximum power from every drop of diesel.Its extraordinarily low fuel

   consumption is a result of this super-precise FIE and its direct injection system-the first ever to go into

   this type of engine.

   FAST,EFFORTLESS STSRTS FROM A ONE-PULL RECOIL STARTER

  A short and smooth pull of the toggle kicks off the engine,as simple as a gasoline auto-return

   decompressor and IZUKI'S own efficient combustion system.Electric starting is also a useful option.

Technical Specifications

Model                                                  IZ178FA

Engine Type                                           Single cylinder,4-stroke,vertical,diesel engine

Combustion chamber type                            Direct injection

Bore x stroke (mm)                                  78 x 64

Displacement  (L)                                    0.305

Rated Power (KW (hp) rpm)                         3.68(5)3000

Cooling system                                       Forced air-cooled

Starting system                                     Recoil starter / Electric starter

Power output method                               Crankshaft or camshaft

Lube oil capacity (L (US.gal)                       1.1(0.29)

Fuel Tank Capacity (L (US.gal)                    3.5(0.92)

Fuel Consumption (g (ml)kWh)                     3000rpm:276(377)

Rotation Direction (view from the wheel)        Clockwise

Dry weight (kg(lbs)                               Recoil starter:33(73) / Electric Starter: 38(84)

Overall Dimension (L x W x H) mm             385 x 420 x 450
