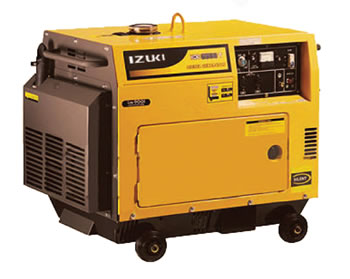

IZUKI DIESEL GENERATOR SETS SDE6500T
Product Description
- Easier and more convenient electric starter
- New AVR (Automatic voltage regulator) stablizes the output power
- Low oil level alarming system will automatically stop the generator when lube
oil is less then the set valve
Model SDE6500T
Rated frequency (Hz) 50 / 60
Rated Output (KvA) 4.5 / 5.0
Max.Output (KvA) 5.0 / 5.5
Rated Voltage (V) 115/230 120/240
Rated Current (A) 39.2/19.6 / 41.7/20.8
Rated rotation speed (r/min) 3000 / 3600
Phase No Single phase
Power factor (Cos) 1.0
Excitation mode Self-eccitation & constant voltage (AVR)
Panel Type General panel
Voltage (V) 115/230 120/240
Overall dimension (L x W x H) mm 912 x 532 x 740
Dry Weight (Kg) 158
Structure type Silent
Engine model SD186FA
Engine type Single cylinder,vertical,four-stroke,
Cylinder NO Bore Stroke mm 1-86x72
Displacement (ml) 418
Rated power (KW r/min) 5.7/3000 6.3/3600
Compression ratio 19:1
Cooling system Air Cooled
Lubrication system Pressure splashed
Starting system Electric starter
Fuel type Diesel
Lube capacity (L) 1.65
Starting motor capacity (V-KW) 12V 0.8Kw
Charging generator capacity (V-A) 12V 3A
Battery Capacity (V-Ah) 12V 36Ah
Fuel Consumption (g/KW.h) 275.1 281.5
Fuel tank capacity (L) 16
Continuous runnimg time (hr) 9.5
