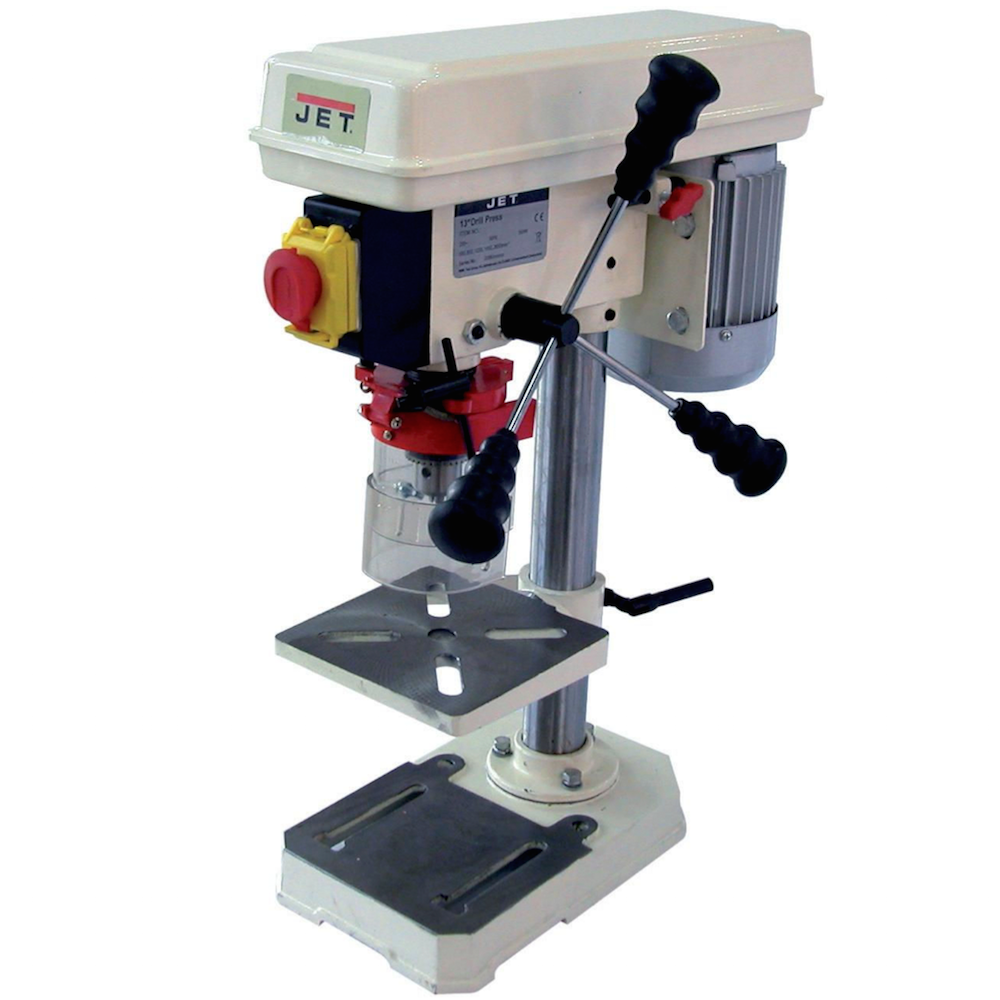

JET Bench Drilling Machine 350W, 13mm, 19kg JDP-8L
JET Bench Drilling Machine 350W, 13mm, 19kg JDP-8L

JET Bench Drilling Machine 350W, 13mm, 19kg JDP-8L

Product Code: JDP-8L
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: JDP-8L

Features

  • Machined cast iron work table and base.
  • 13mm drilling capacity in steel.
  • 350W induction motor.
  • Timed V-Belt for quiet operation.
  • Hinged belt and pulley cover for easy access.
  • Micro adjustable depth gauge.

Specifications

Motor  350W
Spindle Speeds : 5 550, 850, 1200, 1650, 2650 rpm
Spindle Taper B16
Spindle Travel 50mm
Chuck Size 13mm
Throat 104mm
Max. distance spindle to table 200mm
Distance spindle to base 280mm
Table size 160mm x 160mm
Table tilt +/-45°
Overall Dimensions (L x W x H)  430mm x 225mm x 580mm
Weight 19kg
Standard Accessories
  • 13mm drill chuck
  • Chuck guard
  • 60mm x 60mm Vise
