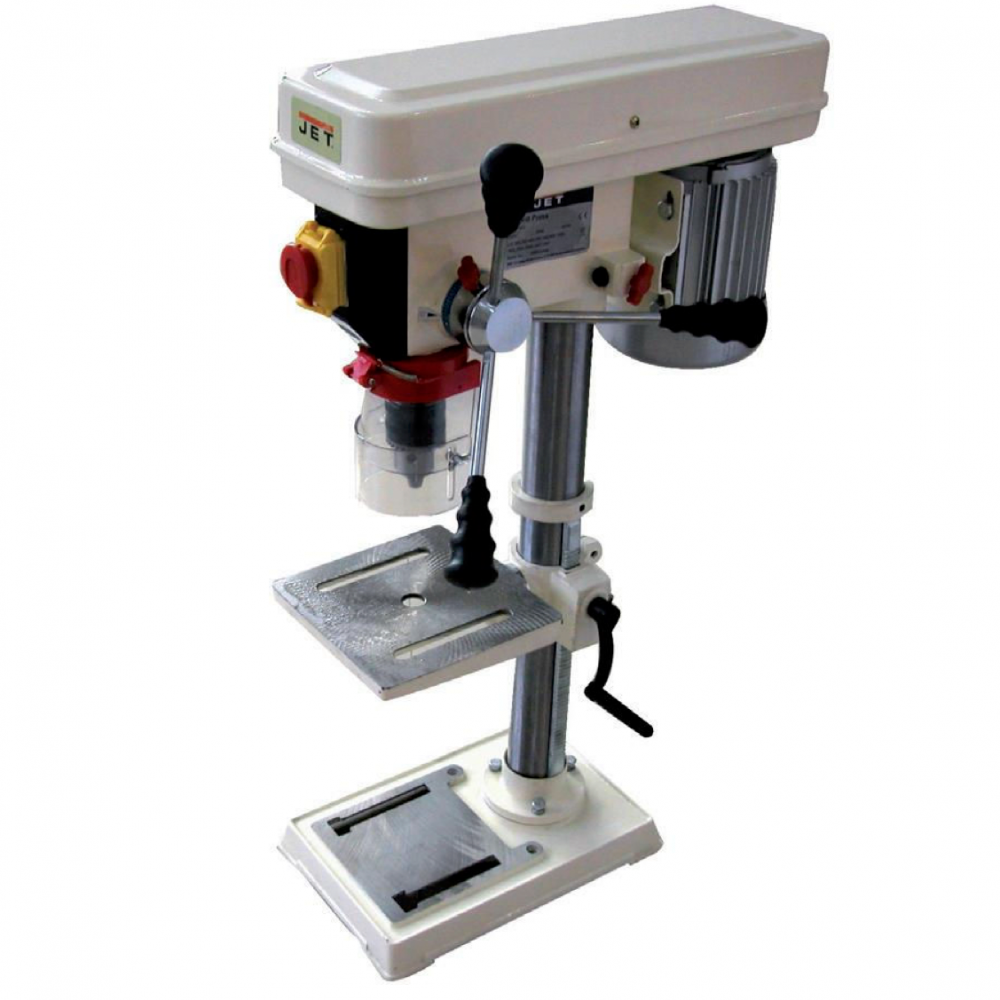

JET Bench Drilling Machine 450W, 16mm, 38kg JDP-10L

JET Bench Drilling Machine 450W, 16mm, 38kg JDP-10L
JET Bench Drilling Machine 450W, 16mm, 38kg JDP-10L

JET Bench Drilling Machine 450W, 16mm, 38kg JDP-10L

Product Code: JDP-10L
Availability: Pre Order
Loading ...
Share:

Model: JDP-10L

Features

  • Machined cast iron work table and base.
  • 16mm drilling capacity in steel.
  • 450W induction motor.
  • Timed V-Belt for quiet operation.
  • Hinged belt and pulley cover for easy access.
  • Rack and pinion table up/down adjustment.
  • The drill press comes complete with 16mm drill chuck, chuck guard and 75mm x 75mm vise.

Specifications

Motor  450W
Spindle Speeds : 12 220-2450 rpm
Spindle Taper MT2 / B16
Spindle Travel 60mm
Chuck Size 16mm
Throat 126mm
Max. distance spindle to table 400mm
Distance spindle to base 520mm
Table size 200mm x 195mm
Table tilt +/-45°
Overall Dimensions (L x W x H)  530mm x 300mm x 820mm
Weight 38kg

Standard Accessories

  • 13mm drill chuck
  • Chuck guard
  • 60mm x 60mm Vise
