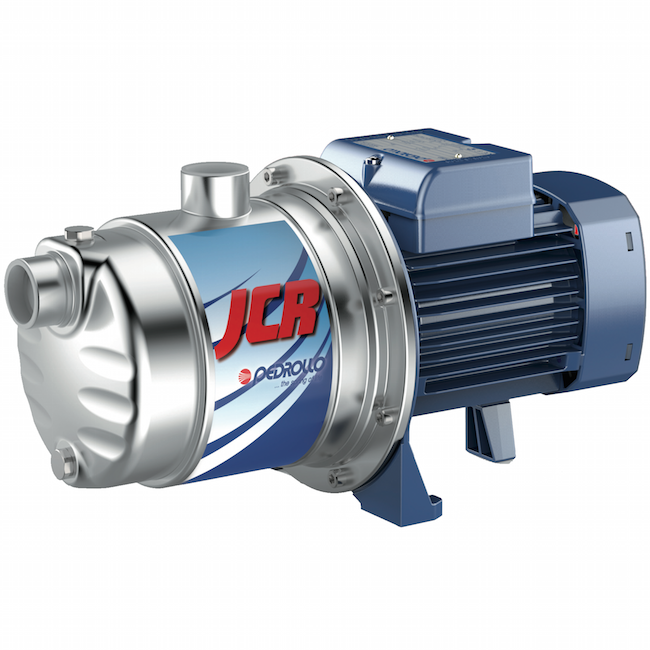

JET Self Priming Pump (SS Pump) 370W, 5~55L/min, 31~11m JCRm1C

Model: JCRm1C (Single Phase)

Price inclusives 6%GST.

Descriptions

• The self-priming JCR pumps are designed to pump water even in cases where air is present.
• As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: domestic

Type: surface

Family: self-priming

Performance range

• Flow rate up to 80 l/min (4.8 m³/h)
• Head up to 72 m

Application Limits

• Manometric suction lift up to 9 m (HS)
• Liquid temperature between -10 °C and +40 °C
• Ambient temperature up to +40 °C
• Max. working pressure 6.5 bar
• Continuous service S1
