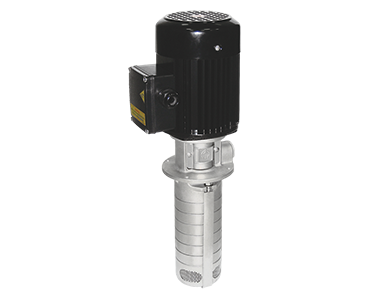

Kikawa immersible multistage pump
Product Code: KK Series
Availability: In Stock
RM0.00
Kikawa KK Series immersible multistage pumps are designed for particularly in machining tools (Lathes, Milling, Drilling, Spark machine...) liquids, or other clean water, oil transfer.
Rated Head Range3~74 m
Rated Flow Range33~66 L/min
Feature
- Separable design, easy installation and service.
- High-efficiency stainless steel pump diffusers and impellers.
- Various immers depth and head, easy customization.
- Positive drive mechanical seal.
- High reliability design.
Applications
- Machining tool liquid delivery
- Washing machine
- Water treatment and filtering
- Coolant circulation
- SPECIFICATIONS
- MODEL EXPLANATION
- DOWNLOADS
| Model | |
|---|---|
| Product series | KK |
| Materials | |
|---|---|
| Pump case | FC200 / SUS304 |
| Motor frame | Aluminium |
| Motor shaft | SUS 304 |
| Mechanical seal | SiC + Viton |
| Impellar | SUS 304 |
| Difusser | SUS 304 |
| ining | SUS 304 |
| Installation | |
|---|---|
| Outlet diameter | PF-3/4 |
| Ambient temperaure | +0℃ ~ +40℃ |
| Fluid temperaure | +0℃ ~ +90℃ |
| Max. operating pressure | 10 kg/cm2 |
| Electrical | |
|---|---|
| Motor type | CNS14400 |
| Number of poles | 2 |
| Efficiency class | IE3 |
| Insulation class | F |
| Cooling method | IC411 |
| Enclosure class | IP54 |
