Launtop Desel Engine & Concrete Vibrator 35mmX5m LA170FA-35TK
Product Code: LA170FA-35TK
Availability: Pre Order
Model: LA170FA-35TK

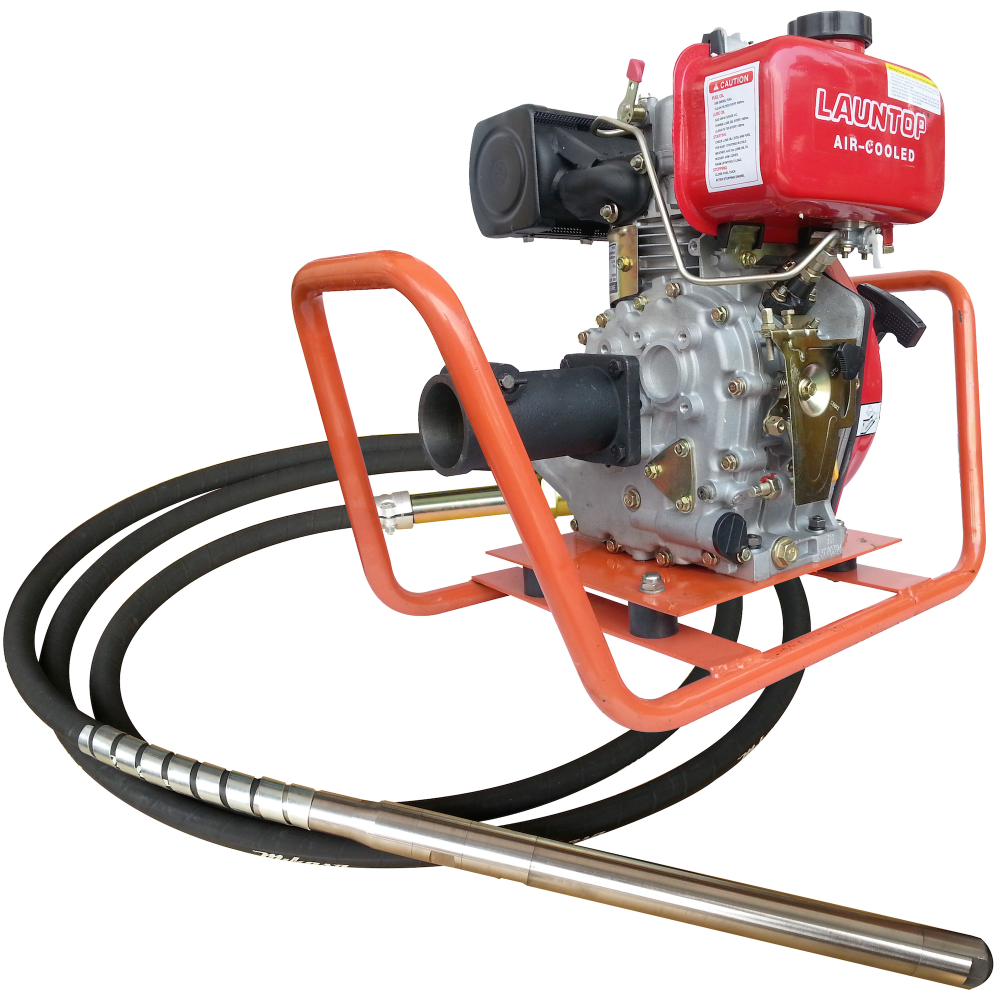

35mm x 5meters Concrete Vibrator with 4.2HP Launtop Diesel Engine.
Features of Engine
- Direct injection combustion system.
- Efficient air cleaner system.
- Compact in structure and small in size.
- Multi-choice PTO shafts are available.
- Recoil start and electric start optional.
Specifications of Engine
| Engine Model | LA170FA |
| Engine Bore x Stroke | 70mm x 57mm |
| Engine Displacement | 219cc |
| Engine Maximum Output | 4.2hp |
| Engine Continuous Output | 3.8hp |
| Lube Oil Capacity | 0.75 Liters |
| Fuel Tank Capacity | 2.5 Liters |
| Engine Dimension (L x W x H) | 332mm x 392mm x 416mm |
| Engine Weight | 27 kg |
Specifications of Concrete Vibrator
| Model | TKLH-35 (Malaysia, Normal Type) |
| Vibrator Head (Ø x L) | 35mm x 410mm |
| Flexible Shaft (Ø x L) | 12mm x 5.0 m |
| Rubber Hose (Ø x L) | 32mm x 5.0 m |
| Amplitute | 1.5 mm |
| Vibrator Per Minute | 9000 x 12000 v.p.m |
| Vibrator Weight | 17 kg |
