Product Code: LA170FA-45TK
Availability: Pre Order
Loading ...
Share:

Model: LA170FA-45TK

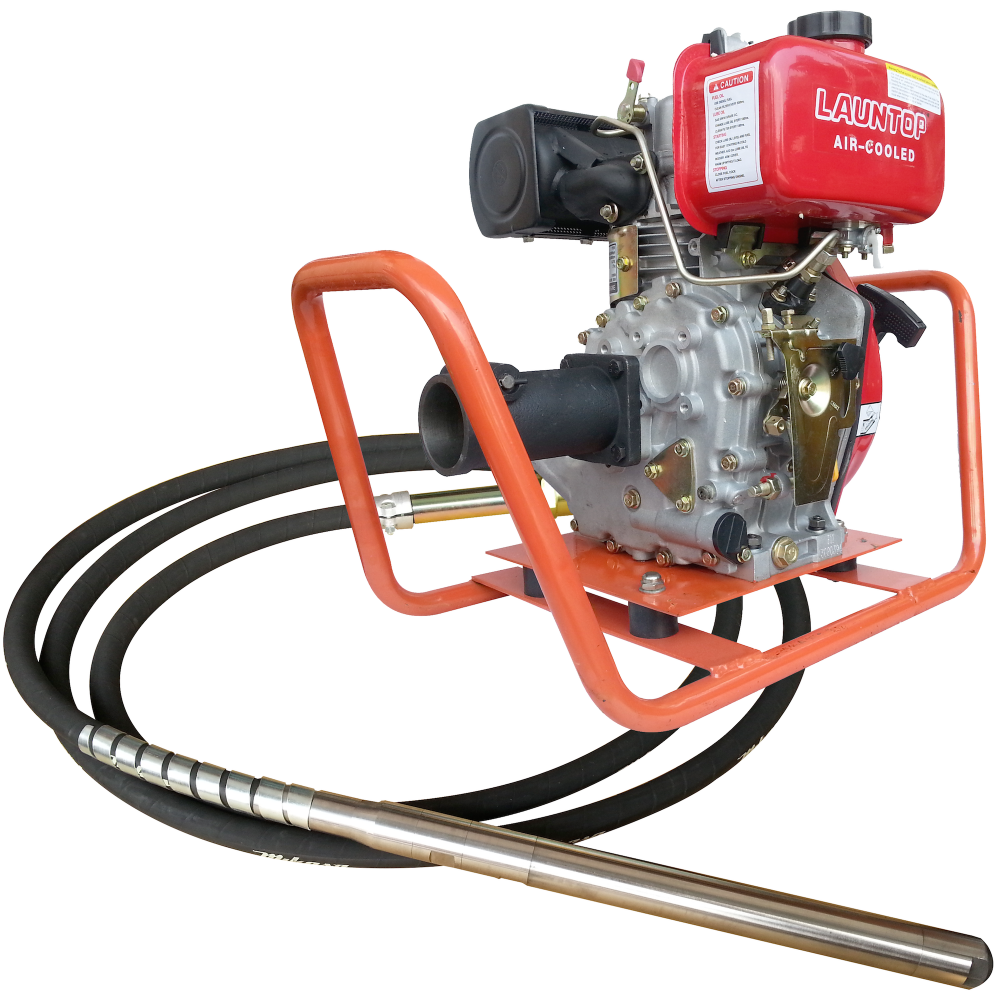

35mm x 5meters Concrete Vibrator with 4.2HP Launtop Diesel Engine.

Features of Engine

  • Direct injection combustion system.
  • Efficient air cleaner system.
  • Compact in structure and small in size.
  • Multi-choice PTO shafts are available.
  • Recoil start and electric start optional.

Specifications of Engine

Engine Model  LA170FA
Engine Bore x Stroke  70mm x 57mm
Engine Displacement  219cc
Engine Maximum Output 4.2hp
Engine Continuous Output  3.8hp
Lube Oil Capacity 0.75 Liters
Fuel Tank Capacity 2.5 Liters
Engine Dimension (L x W x H) 332mm x 392mm x 416mm
Engine Weight 27 kg

Specifications of Concrete Vibrator

Model TKLH-45 (Malaysia, Normal Type)
Vibrator Head (Ø x L) 45mm x 450mm
Flexible Shaft (Ø x L) 12mm x 5.0 m
Rubber Hose (Ø x L) 32mm x 5.0 m
Amplitute 1.65 mm
Vibrator Per Minute 9000 x 12000 v.p.m
Vibrator Weight 18 kg
