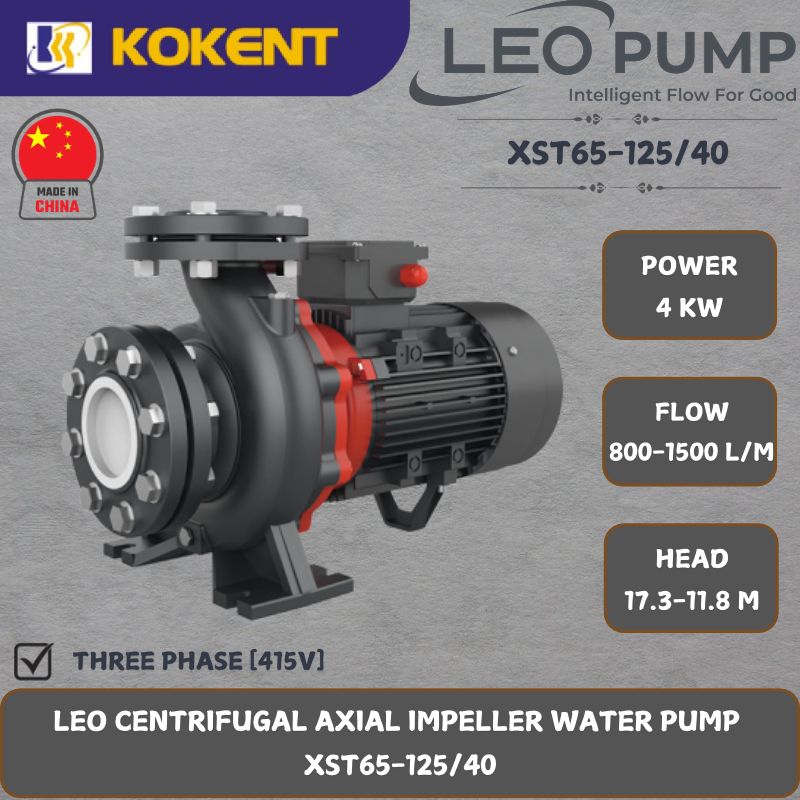

LEO CENTRIFUGAL AXIAL IMPELLER WATER PUMP [4KW.800-1500L/MIN.17.3-11.8M/HEAD] XST65-125/40

Description

Model: LEO XST65-125/40

LEO XST65-125/40 single impeller centrifugal pump featuring axial intake and radial discharge. Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications.

Applications

• Circulation and transfer of clean, chemically non-aggressive water and other liquids
• Water supply & irrigation
• Water circulation in air conditioning systems
• Fire fighting system

Operating Conditions

• Delivery: up to 210 m3/h
• Head: up to 95 m
• Liquid temperature: Standard -10°C to 85°C
• Maximum operating pressure: 12 bar (PN12)
• Anti-clockwise rotation when facing pump’s suction port
• Impeller: AISI304 , HT200
• Mechanical seal in compliance with DIN 24960
• Lubricated by internal recirculating pumped liquid
• Counter flange available on request

Motor

• Closed construction, external ventilation
• Insulation class: F
• Enclosures class: IP54
• Performance in compliance with CEI 2-3 (IEC 34.1) Max.ambient temperature: +40°C
• Overload protection

Specifications
