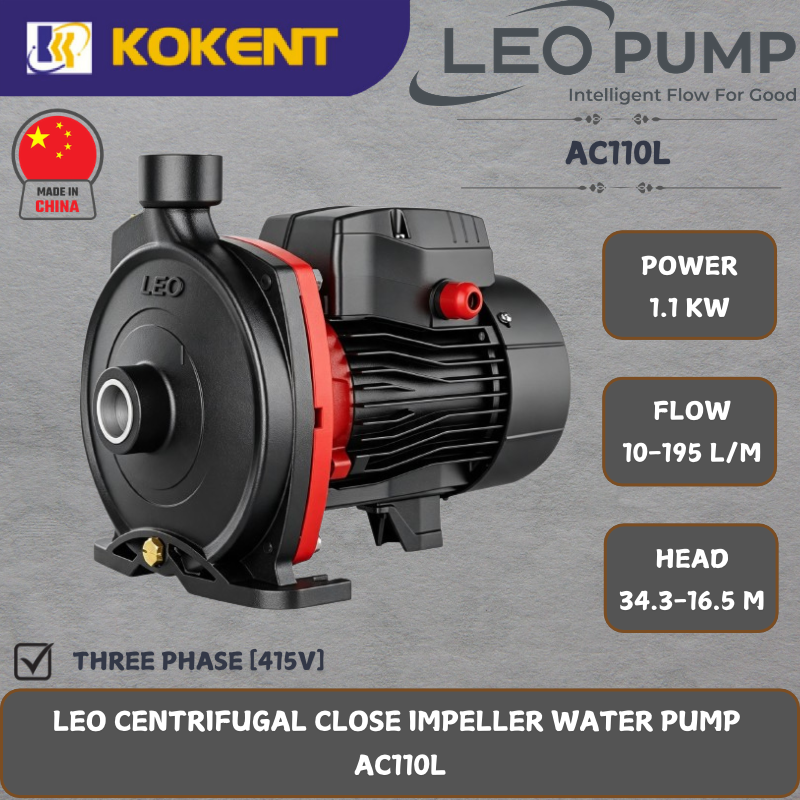

LEO CENTRIFUGAL CLOSE IMPELLER WATER PUMP [1.1KW.10-195L/MIN.34.3-16.5M/HEAD] AC110L

Description

Model: LEO AC110L

LEO AC110L is a centrifugal pump with close coupled impeller. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.

Applications

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
• Industrial use and urban water supply
• Agriculture irrigation
• Water transfer for lake, river and well

PUMP

• Cast iron pump body and support under special anti-rust treatment
• AISI 304 shaft
• Max. liquid temperature: +60°C
• Max. suction: +8 m

Motor

• IE2 Motor
• Motor with copper winding
• Built-in thermal protector for single phase motor
• Insulation class: F
• Enclosures class: IPX4
• Max. ambient temperature: +50°C
• IE2 Motor

Specifications
