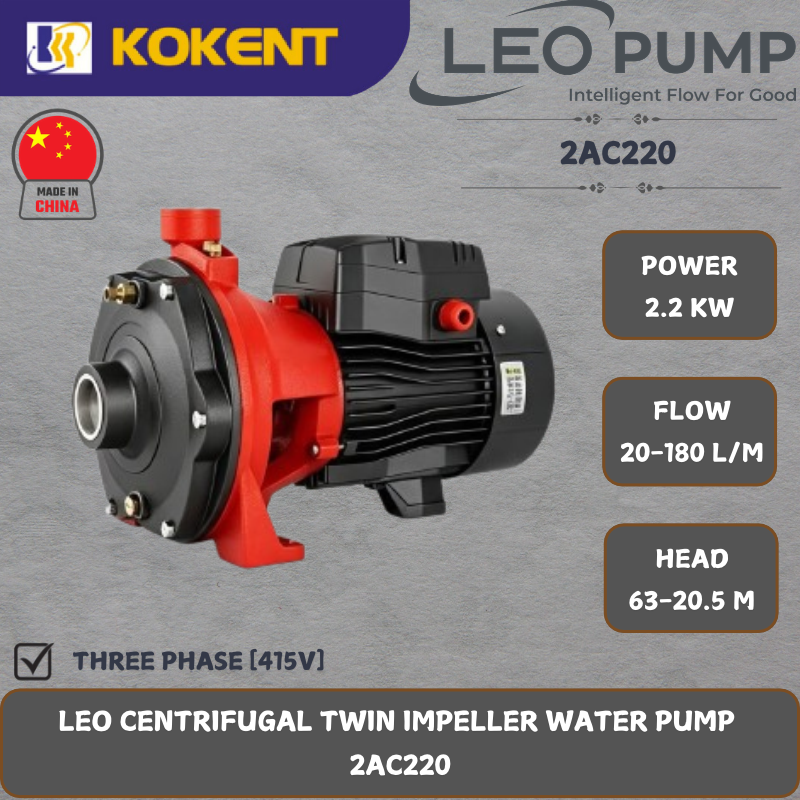

LEO CENTRIFUGAL TWIN IMPELLER WATER PUMP [2.2KW.20-180L/MIN.63-20.5M/HEAD] 2AC220

Description

Model: LEO 2AC220

LEO 2AC220 is a centrifugal pump with twin impeller. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting,

Applications

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
• Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

PUMP

• Cast iron pump body and support under special anti-rust treatment
• AISI 304 shaft
• Max. liquid temperature: +60°C
• Max. suction: +8 m

Motor

• Low noise & Long life bearing
• Motor with copper winding
• Built-in thermal protector for single phase motor Insulation class: F
• Enclosures class: IPX4
• Max. ambient temperature: +50°C
• IE 2 motor

Specifications
