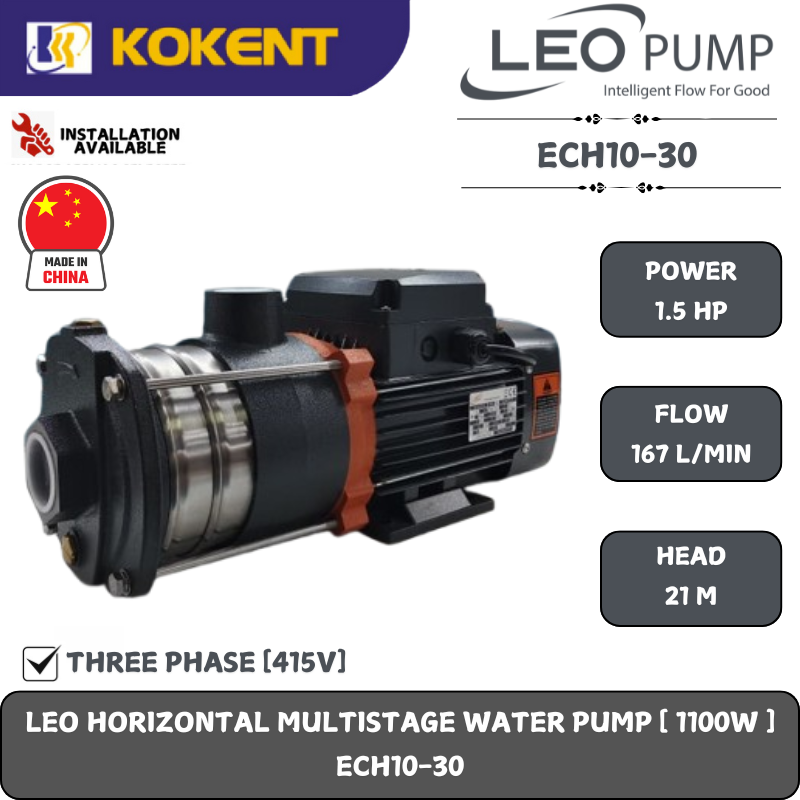

LEO HORIZONTAL MULTISTAGE WATER PUMP (11/2"X11/4") (1.1KW,1.5HP,415V,3PH,50HZ) (100-200L/MIN - 27.1-

SPECIFICATION

Model : ECH 10-30

Voltage : 415V

Flow (L/min): 100 – 200

Head (m): 27.1 – 16.9

Power (kw / hp): 1.1 / 1.5

Inlet / Outlet: 1½” X 1¼”

Dimensions: 420 x 215 x 243 mm

Weight: 11.8 kg

Scope Of Delivery

• 1x Leo Horizontal Multistage Pump ECH 10-30

Description

Applications

• Household water supply

• Pipeline pressurization

• Industrial and mining

• Fish farming and poultry raising

• Central air conditioning and heating circulation

Features

• Max liquid temperature +85˚C

• AISI 304 fabricated shaft

• Built in thermal protector

• Insulation class: F

• Protection class: IP44
