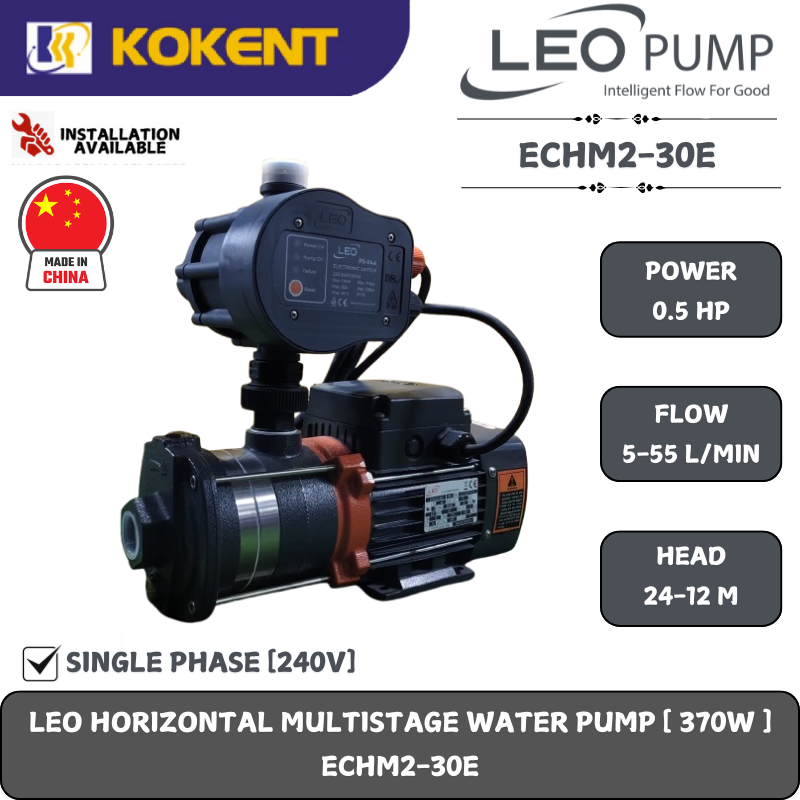

LEO HORIZONTAL MULTISTAGE WATER PUMP (1"X1")(12UF) (0.37KW/0.5HP/240V/1PH/50HZ) (5-55L/MIN - 24-12M/

Product details of LEO ECHM2-30E MULTISTAGE CENTRIFUGAL PUMP

Installation Available!

Live Chat us to made appointment!

Pump:

AISI 304 shaft

Max. liquid temperature: +85°C

Liquid PH valve: 4 - 10

Motor:

Motor with copper winding

Built-in thermal protector for single phase motor

Insulation class: F

Protection class: IP55

Max. ambient temperature: +40°C

Application:

It is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc

Brand : LEO

Model :ECHM2-30E

Power Consumption : 0.5HP / 370W

Voltage : 220V (50Hz)

Inlet - Outlet : 1'' (25mm)

Max Flow : 34L/min

Max Head : 26m

Stainless Steel Impeller

Motor With 100% Cooper Winding

Max.liquid temperature :+40C

Warranty period : 2 years

Warranty type : Local Supplier Warranty
