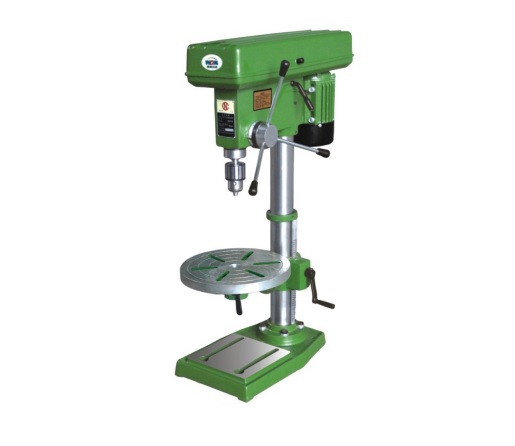

Light Drilling Machine (II)
Product Code: ZQ / ZQD Series
Availability: Pre Order
Light and flexible, it can be used not only on machine processing, repairing but also DIY repairing and daily use.
| Model | ZQ4113 | ZQ4119 | ZQ4125 | ZQD4125 |
| Max. Drilling Capacity (mm) | 13 | 19 | 25 | 25 |
| Diameter of column (mm) | 70 | 70 | 85 | 85 |
| Spindle Travel (mm) | 85 | 85 | 110 | 110 |
| Distance Spindle Axis to Column Generating Line (mm) | 180 | 180 | 200 | 200 |
| Maximum Distance Spindle Nose to Workable (mm) | 390 | 410 | 480 | 490 |
| Maximum Distance Spindle Nose to Base (mm) | 570 | 590 | 670 | 1240 |
| Spindle Taper | B16 | MT2 | MT3 | MT3 |
| Spindle Speeds Range (rpm) | 450-2650 | 200-2780 | 200-2280 | 200-2280 |
| Moto (w) / Phase | 370/1 | 550/1 | 750/1 | 750/1 |
