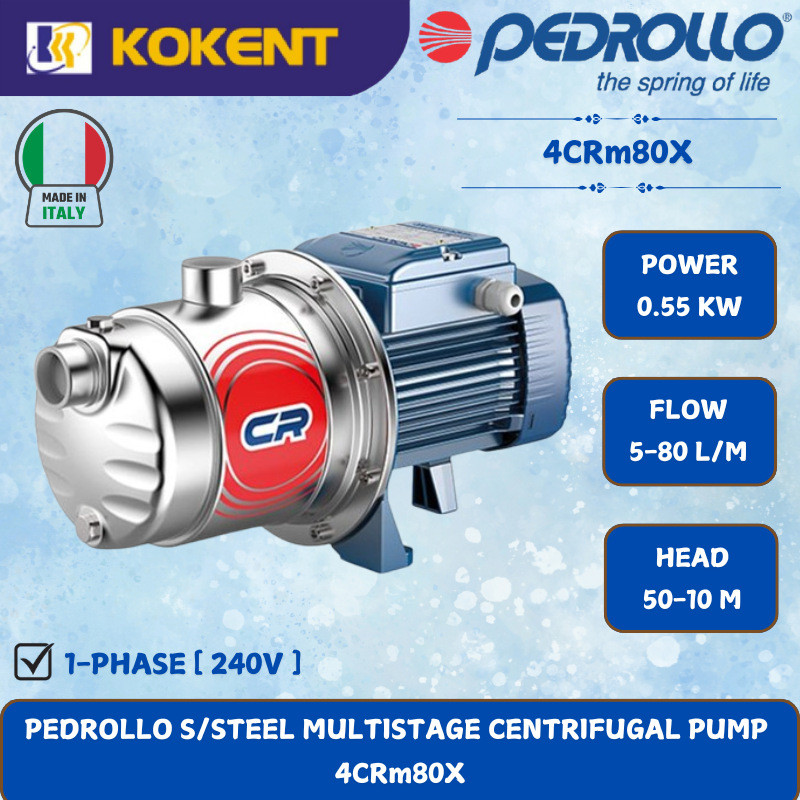

LO S/STEEL MULTISTAGE CENTRIFUGAL PUMP [0.55KW.5-80L/MIN.50-10M/HEAD] 4CRm80X

Description

Model: 4CRm80X (Made in Italy)

Pedrollo 4CRm80X is a stainless steel multistage centrifugal pump with Noryl Plastic Impeller.

Single phase, 240V.

Descriptions

• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• As a result of their quietness, these pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure sets, and for the irrigation of gardens and allotments, etc.

Features

• Liquid type: clean water
• Uses: domestic, civil
• Applications: water supply systems, pressure systems, irrigation pumps
• typology: surface
• Family: horizontal multistage pumps

Performance Range

• Flow rate up to 130 l/min (7,8 m³/h)
• Head up to 67 m

Application Limit

• Temperature of the liquid from -10 °C to +40 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 7 m
• Max. working pressure 7 bar
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
